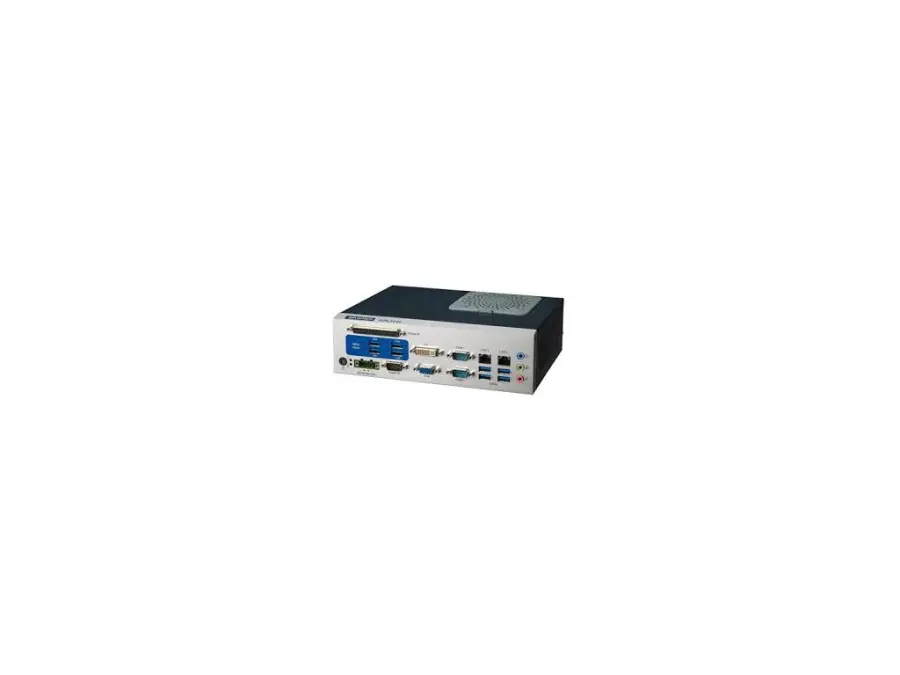

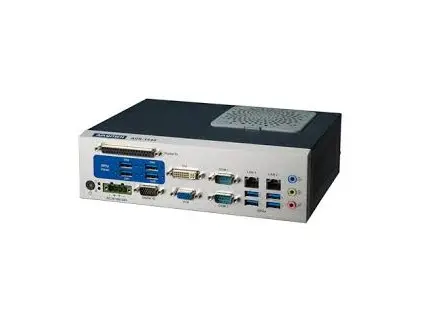

4 channel Inspection Control System
COMPUTER SYSTEM with dedicated controller Verified by USB3 Camera, USB3.0 CAM BOX, H61, 2 LAN, 4+4 USB3, 6 COM
Advantech's Power over Ethernet (PoE) and USB3 camera controllers for vision inspection. The device AIIS-1440, is used to aim automated optical inspection (AOI) to include packaging, label, wafer, and alignment applications that use vision. The AIIS-1440 features a dedicated USB3 controller on each vision channel that is compliant with USB 3.0 SuperSpeed. Data can be transferred at up to 5 Gbit/s compared with 480 Mbit/s with USB 2.0. It is also compatible with USB3 vision cameras.Intelligent Inspection Controller
Intel® 3rd/2nd Core™ i7/i5/i3 CPU (LGA1155)
4-CH USB 3.0 with dedicated controller
Verified by USB3 Camera
Volume less than 3 Litre
Internal USB Type-A with lock design (Max. 49mm length)
Wall or DIN rail mounting kit (optional)
Build in G-sensor for vibration detection
