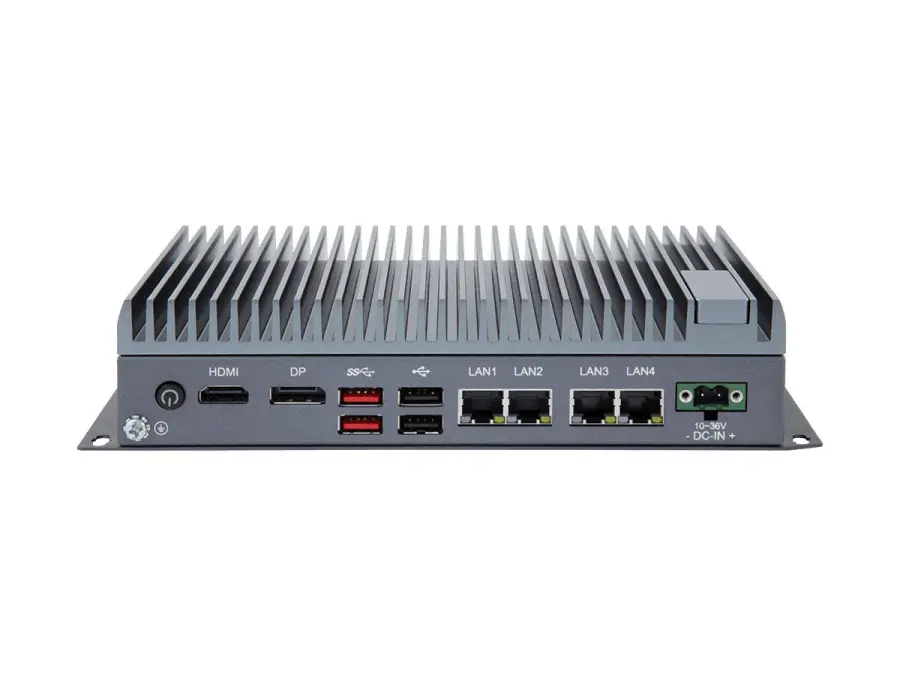

# Arbor SB-244-1N305

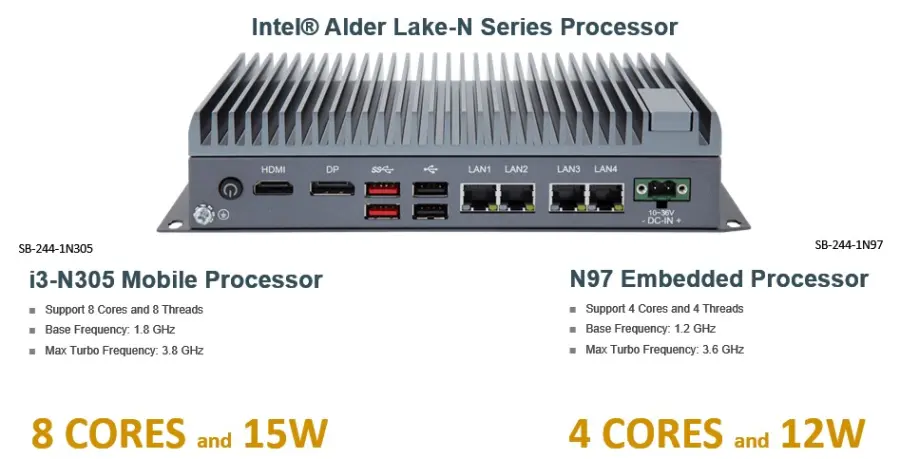

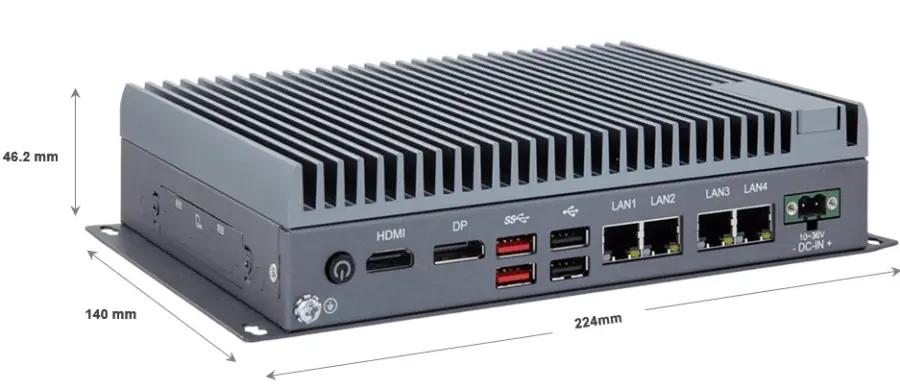

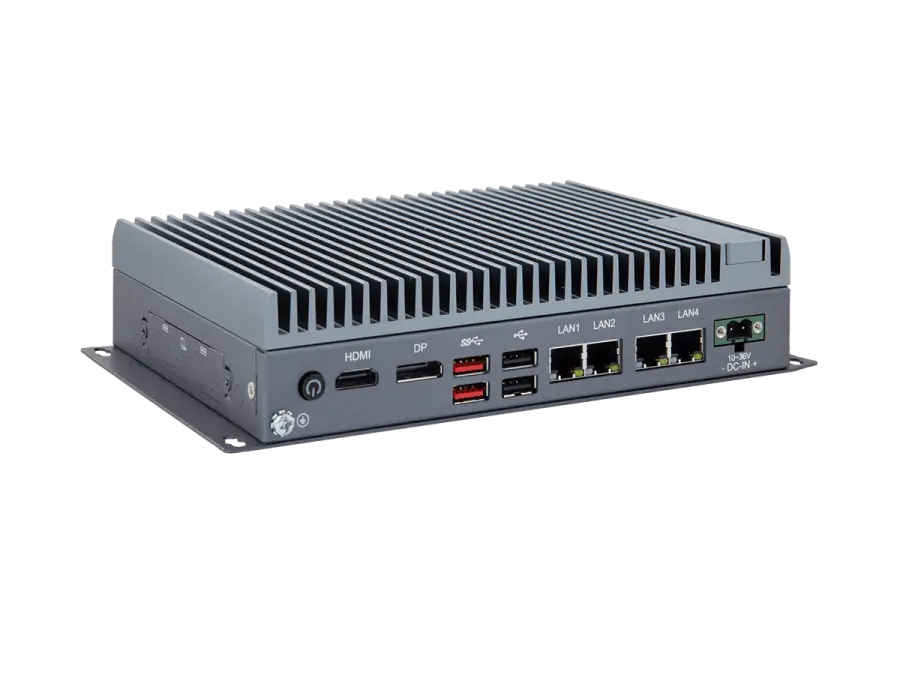

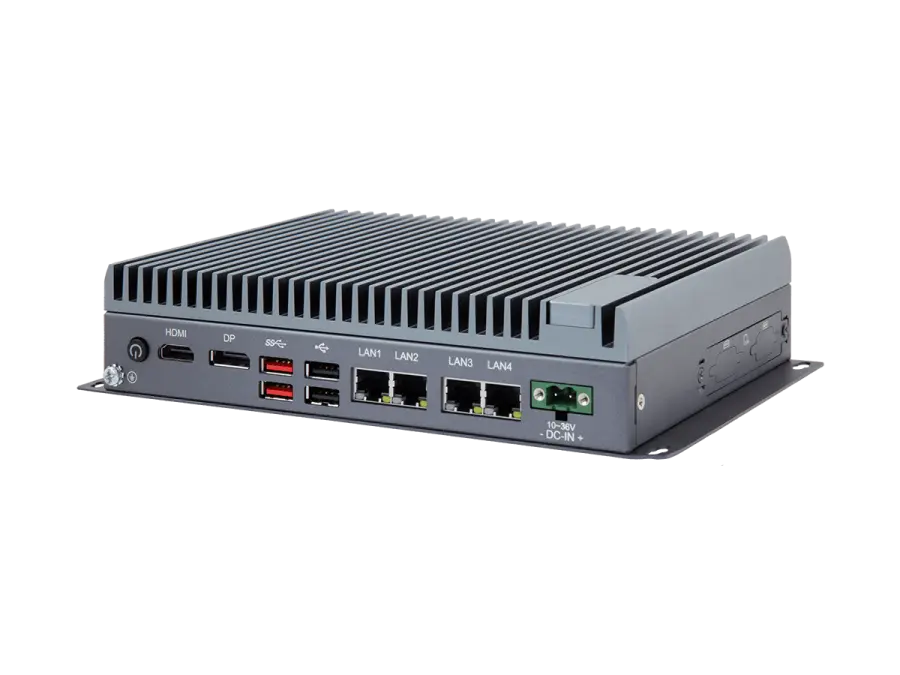

Thin industrial fanless computer (Barebones) with Intel Core i3-N305 (Alder Lake-N) DC12 ~ 36V, 224 x 140 x 46.2 mm

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 101524360023 |
| Code 2 | 7624410000020P |
| Warranty | 24 |
| Warranty for companies | 24 |
| Brand | ARBOR |

## Podrobný popis

About ARBOR TechnologyARBOR is a global provider of specialized industrial computing and mobile solutions for the Internet of Things. ARBOR offers comprehensive system integration, customer-focused design services, embedded systems, automation products and global logistics support. We work closely with our partners to develop complete solutions for a variety of applications in a wide range of industries. Our mission is to enable a smarter planet by providing mobile and embedded computing products that make working and living smarter easier.We are pleased to introduce our newest product, the SB-244 Alder Lake-N series- a high-performance, thin and energy-efficient rugged computer designed to meet the demands of smart logistics, industrial automation and remote monitoring. This new series features unmatched performance, reliability and versatility in the most demanding environments.Intelligent logisticsThe SB-244 Alder Lake-N series is ideal for smart logistics applications. Its slim design and low power consumption make it ideal for integration intoAGV(Automated Guided Vehicle) , which moves along a predefined route, andAMR(Autonomous Mobile Robot) - a type of robot, which is more advanced than AGVs and uses advanced technologies such as sensors, cameras and artificial intelligence to navigate in dynamic environments, allowing it to move efficiently in warehouses while transporting goods.Thanks to its compact size, it ensures seamless integration into logistics systems, increasing operational efficiency and productivity.Industrial automationThe SB-244 Alder Lake-N series was designed with industrial protection in mind and excels in manufacturing environments. With a wide range of I/O ports, it serves as an excellent automation gateway that enables seamless communication and control of various industrial processes. Its robust design ensures that it can withstand the harsh conditions typical of industrial environments, ensuring continuous and reliable operation.Remote monitoringDesigned to withstand harsh conditions and extreme temperatures, the SB-244 Alder Lake-N Series is ideal for energy and environmental monitoring in remote areas. Offering wireless connectivity and expandability, it supports Wi-Fi, 4G and 5G capabilities, ensuring efficient operation in remote locations and providing real-time data and analytics.Robust and reliableThe SB-244 Alder Lake-N series offers exceptional performance, rugged industrial protection and a wealth of features in a compact design, making it ideal for use in harsh, extreme industrial environments. We believe this new series will greatly enhance the efficiency of your operation and provide a reliable and effective solution for your computing needs.SpecificationsBarebone fanless system, Intel Core™ i3-N305 processor, 4xLAN, 4xCOM (up to 6), 6xUSB, 1xHDMI, 1xDP, DC12-36V power input.FeaturesIntel® Alder Lake-N Core i3-N305 processor (8 cores, up to 3.8 GHz)1x 3200 MHz SDRAM DDR4 memory (max. 16 GB)Support 3x 2.5GbE LAN portsDP/HDMI display supportSupport M.2 SSD, mSATA, MiniPCIE Wifi, MiniPCIE, M.2 3052 5G cellular4x RS232/422/485, 2x USB 3.2 Gen. 2, 4x USB 2.0Power supply 12 ~ 36 V DC

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Min. provozní teplota | Min. provozní teplota
-20 °C |
| Max. provozní teplota | Max. provozní teplota
60 °C |

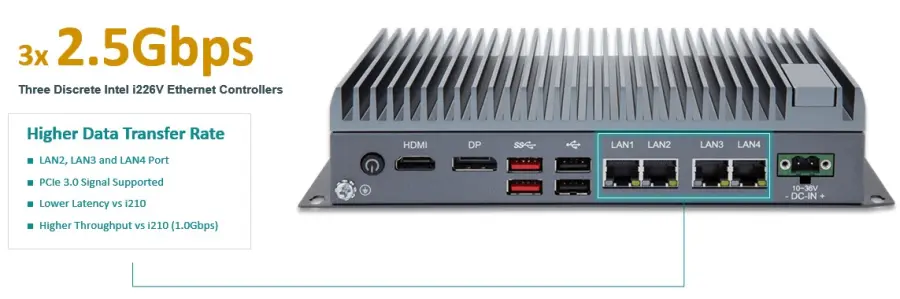

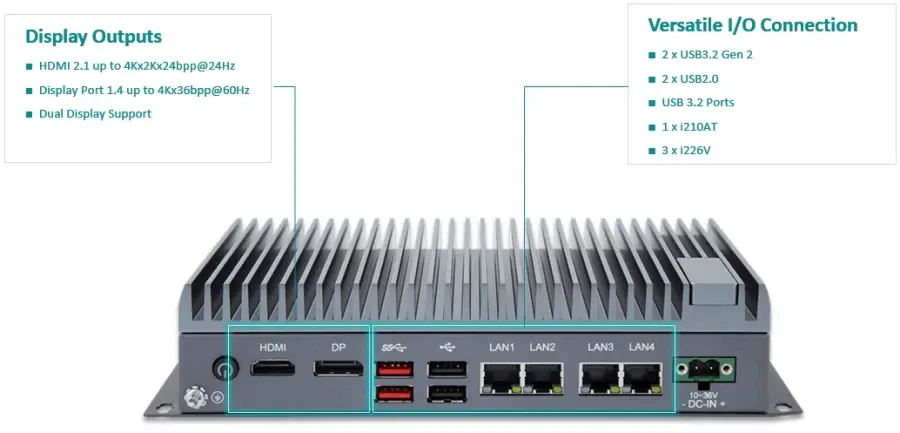

| Ethernet | Ethernet
10/100/1000 Mbps |
| Celkový počet LAN portů | Celkový počet LAN portů
4 |

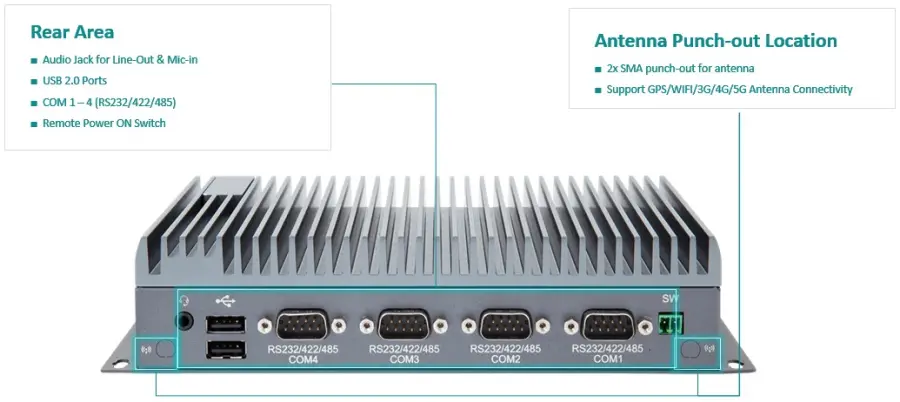

| Počet sériových portů | Počet sériových portů

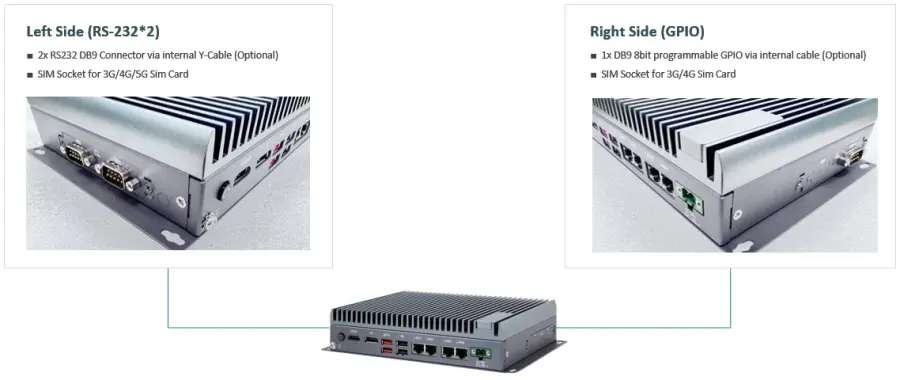

4 |

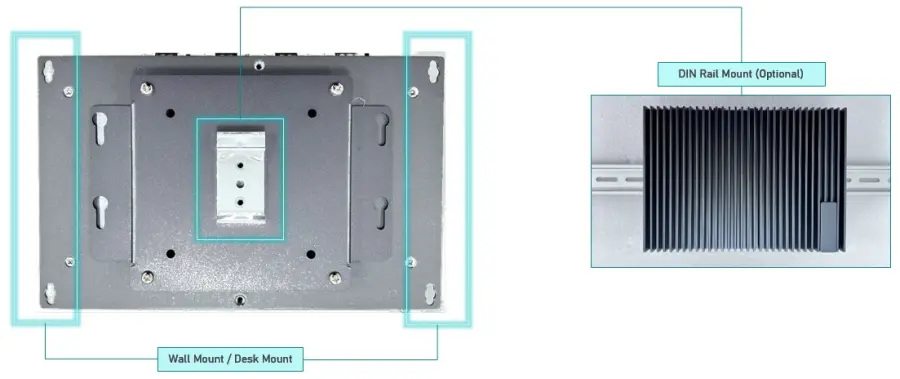

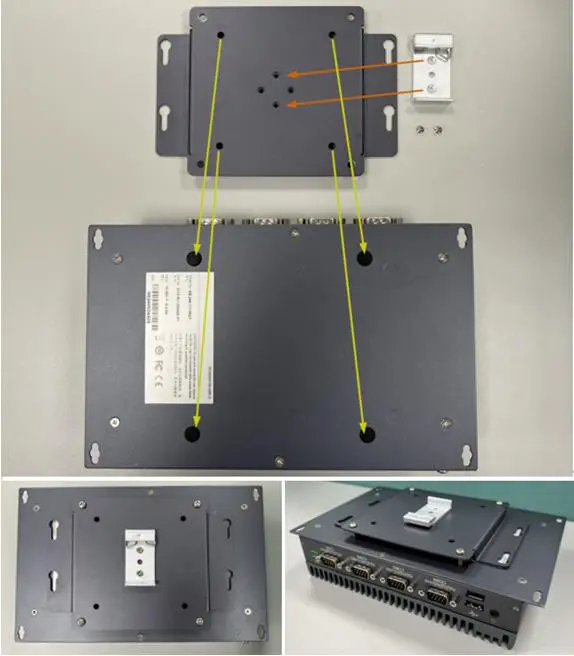

| Montáž na lištu DIN | Montáž na lištu DIN
Ne |
| Montáž do skříně RACK | Montáž do skříně RACK
Ne |
| Montáž na panel | Montáž na panel
Ano |
| Počet USB portů | Počet USB portů
6 |
| Napájení | Napájení
12 ~ 36V DC |
| HDD/SSD | HDD/SSD
M.2; mSATA |
| čipset / CPU | čipset / CPU
Alder Lake SoC |
| Wi-Fi | Wi-Fi
Volitelně |
| Pasivní chlazení | Pasivní chlazení
Ano |
| Rozšiřující sloty | Rozšiřující sloty

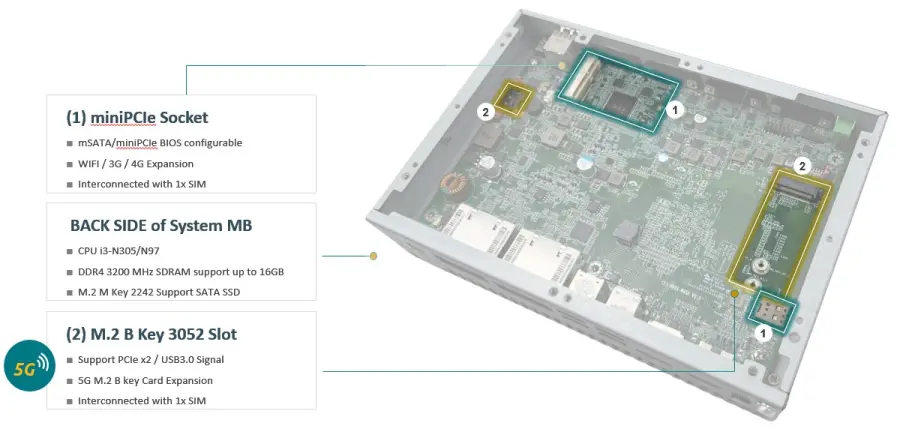

M.2; mini PCIe |
| Procesor | Procesor
Intel Core i3 |

## Soubory ke stažení

* [Katalog SB-244-1N305](https://www.elvac.eu/ipc/download/arbor/datasheet/SB-244-1N305.pdf)
