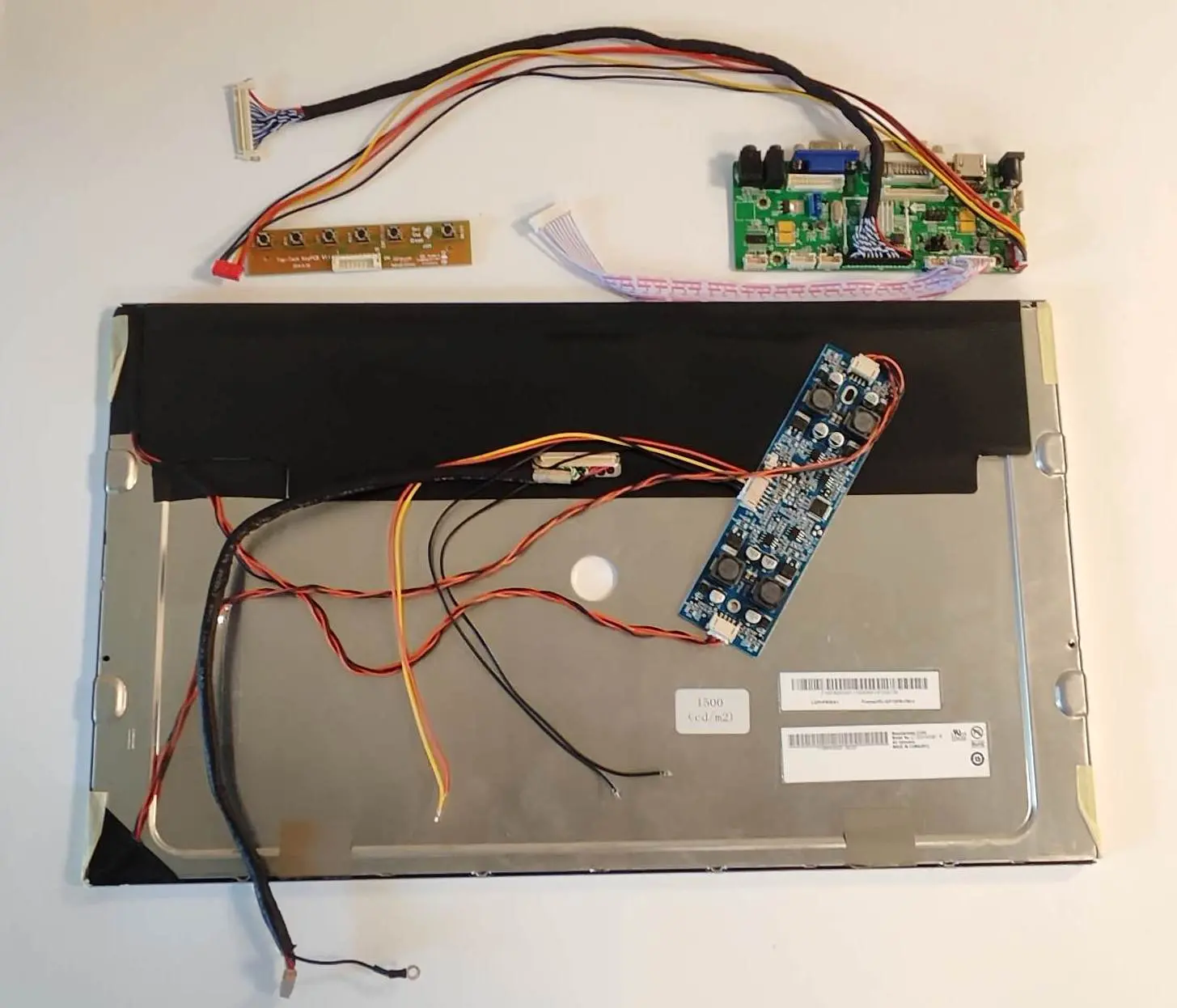

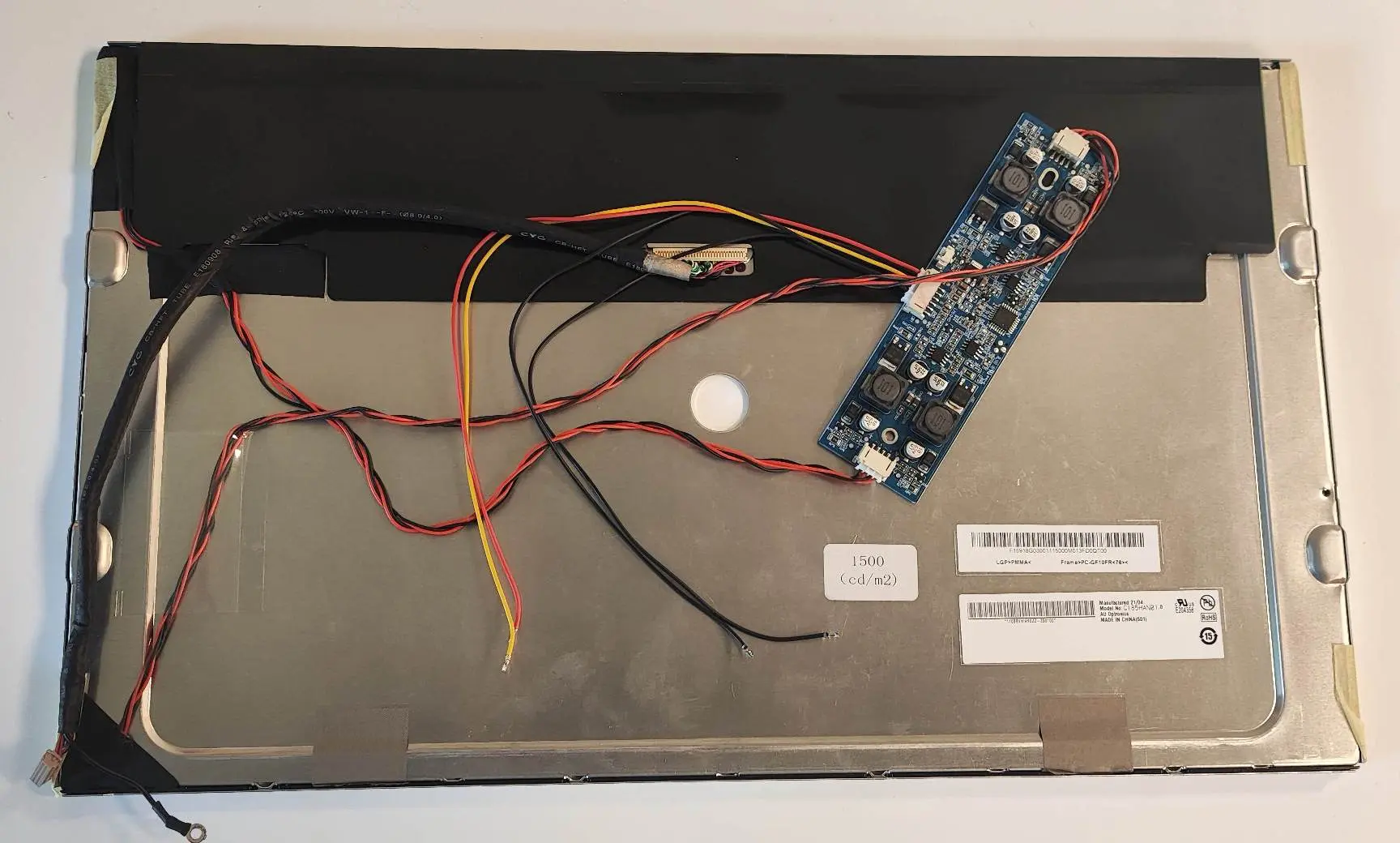

PeripheralsIndustrial and Specialty LCD and LED Monitors and AccessorieOpen frame LCD KITsAUO G185HAN01.0 with brightness 1500 nits, -20 ~ 70°C

AUO G185HAN01.0 with brightness 1500 nits, -20 ~ 70°C

To place an order, please register/log in

Resolution 1920 X 1080 Brightness 350 cd/m2 (Typ.) Viewing Angle 89/89/89/89 (Typ.)(CR>=10) Contrast Ratio 1000:1 (Typ.) (TM) Display Colors 16.7m (srgb) Pixel Format RGB Vertical Stripe Display Area 409.8 X 230.4(mm) Display Mode AHVA

You need to be logged in to view information about price and stock

Unit:	pcs
Code 1:	150210000008
Code 2:	G185HAN01.0
Warranty:	12
Warranty for companies:	12

Description

Resolution 1920 X 1080 Brightness 150 cd/m2 (Typ.) Viewing Angle 89/89/89/89 (Typ.)(CR>=10) Contrast Ratio 1000:1 (Typ.) (TM) Display Colors 16.7m (srgb) Pixel Format RGB Vertical Stripe Display Area 409.8 X 230.4(mm) Display Mode AHVA， Normally Black ， Transmissive Lamp Type WLED 50k Hours With LED Driver Outline Size 430.4 X 254.6 X 12.5(mm) Surface Matte ，Hard coating (3H) Panel Weight 1.20kgs (Typ.) Response Time 10/10 (Typ.)(Tr/Td) Frequency 60Hz Signal Interface LVDS (2 ch 8-bit) 30 pins Input Voltage 5.0v (Typ.) Environment Operating Temp.: -20 ~ 70°c

Downloads

Videos

G185HAN01.0_Ver0.1

G185HAN01.0_Ver0.1

Documents

Technical specification

Specifikace

Rozlišení displeje

800x600
