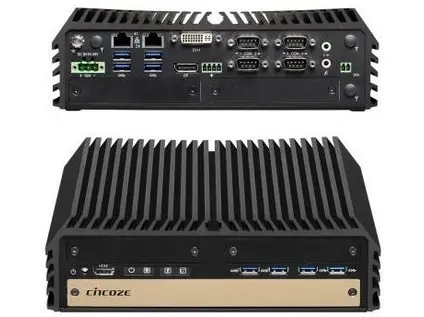

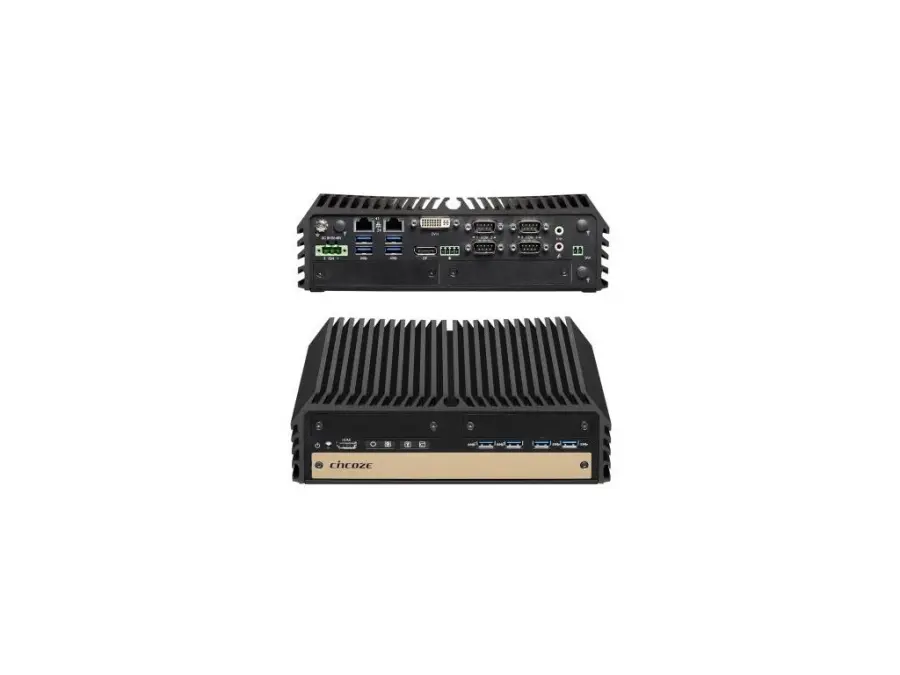

# Cincoze DX-1100-R10

The Cincoze DX-1100-R10 is a rugged workstation with 9/8th Gen Intel® Octa-core CPUs. It supports 4K/2K displays, has 2x SATA trays, 3x mSATA, USB 3.1 ports, and expandable slots including M.2 and Mini-PCIe. Offers PoE+ and ignition sensing options.

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 101523450108 |
| Code 2 | CINCOZE DX-1100-R10 |
| Warranty | 24 |
| Warranty for companies | 24 |
| Brand | CINCOZE |

## Podrobný popis

The Cincoze DX-1100-R10 is an advanced rugged workstation, designed to deliver high-performance computing capabilities. It is powered by the 9/8th Generation Intel® Xeon® and Core™ Octa-core Processors, ensuring swift and efficient operations.The system boasts a triple independent display support, offering 4K/2K UHD resolution across HDMI, DP, and DVI-I outputs. For storage, it features 2x 2.5" hot-swap SATA HDD/SSD trays and 3x mSATA sockets, ensuring ample space and flexibility. The inclusion of 2x USB 3.1 ports facilitates data transfers at speeds up to 10Gb/s.Expansion options are abundant with an M.2 E Key socket (CNVi), three full-size Mini-PCIe sockets, and a SIM card socket for cellular connectivity. The DX-1100-R10 also offers a unique CMI interface for I/O expandability. Additionally, with optional CFM modules, the system supports Power over Ethernet (PoE+) and power ignition sensing, making it versatile for various applications.Built for resilience, it can operate in temperatures ranging from -40°C to 70°C, ensuring consistent performance in challenging environments.

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Min. provozní teplota | Min. provozní teplota
-40 °C |
| Max. provozní teplota | Max. provozní teplota
70 °C |
| Ethernet | Ethernet
10/100/1000 Mbps |
| Celkový počet LAN portů | Celkový počet LAN portů
2 |
| Počet sériových portů | Počet sériových portů
4 |
| Montáž na lištu DIN | Montáž na lištu DIN
Ano |
| Montáž do skříně RACK | Montáž do skříně RACK
Ne |
| Montáž na panel | Montáž na panel
Ano |
| Počet USB portů | Počet USB portů
8 |
| Napájení | Napájení
9 ~ 48V DC |
| HDD/SSD | HDD/SSD
2,5'' SATA HDD / SSD; mSATA |
| čipset / CPU | čipset / CPU
C246 |
| Wi-Fi | Wi-Fi
Ano |
| Pasivní chlazení | Pasivní chlazení
Ano |
| Rozšiřující sloty | Rozšiřující sloty
M.2; mini PCIe |
| Procesor | Procesor
Intel Xeon |

## Soubory ke stažení

* [Katalog DX-1100](https://www.elvac.eu/ipc/download/Cincoze/datasheet/DX-1100.pdf)
* [Katalog DX-1100.pdf](https://www.elvac.eu/files/shop/Cincoze/datasheet/DX-1100.pdf)
