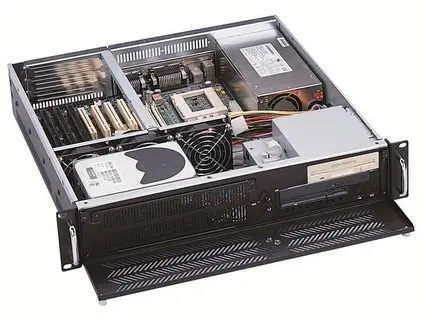

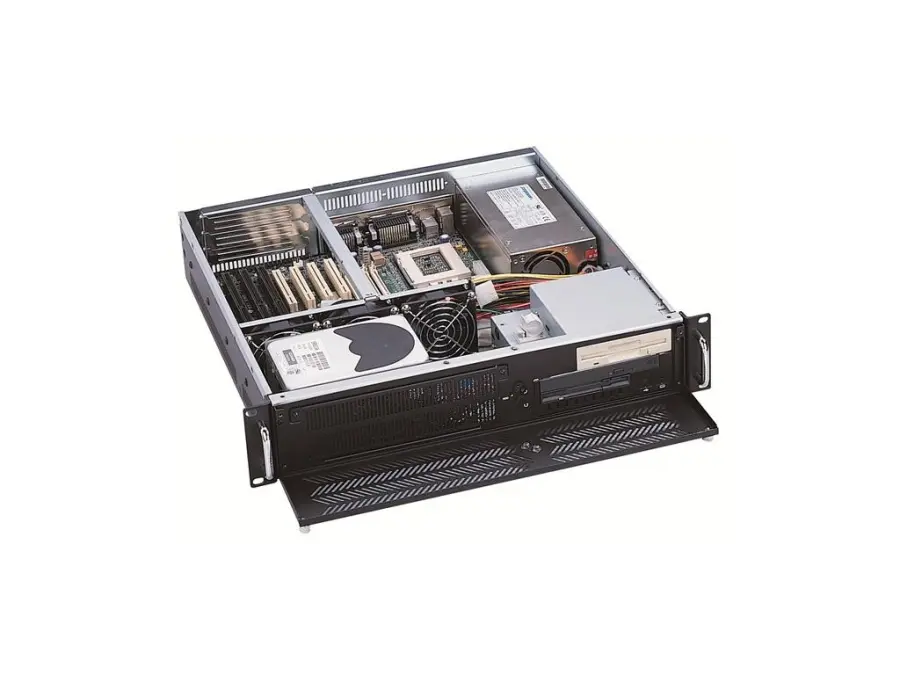

# GHI-210/400W Zippy P2H-6400P

19" Rackmount Standard

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 120102820104 |
| Warranty | 24 |
| Warranty for companies | 24 |
| Brand | GUANGHSING |

## Podrobný popis

2U Rackmount Chassis 19" Rackmount Standard Support ATX M/B (Max. to 12" x 9.6") Drive Capacity: 1x 5.25" (or 1x Slim CD-ROM & 1x 3.5" HDD ) & 1x 3.5" FDD & 3x 3.5" HDD Power Supply (Optional): 2U Single up to 400W or Redundant up to 350W ATX P/S (Rear Installation) Cooling: 3x (80mm = 42.5CFM ea.) Fans Connector Port (Front): 2x USB Ports Front Door: Single Door With 2 Thumbscrews Riser Card: Optional 2U Riser Card Expansion Slots (Optional): 2 or 3x Horizontal ISA/PCI/AGPOption Slots Indicators: LEDs for Power ON/OFF, HDD Activity Switch: Power ON/OFF Momentary (Square), System Reset Dimensions (W x H x D): 483 x 88 x 450mm GW: 11.6 kgs / 25.6 lbs

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Montáž do skříně RACK | Montáž do skříně RACK
Ano |
| Montáž na panel | Montáž na panel
Ne |
| Stolní provedení | Stolní provedení
Ne |
| Pasivní chlazení | Pasivní chlazení
Ne |
| Výška | Výška
88 mm |
| Hloubka | Hloubka
450 mm |
| Šířka | Šířka
483 mm |
| Montáž na lištu DIN | Montáž na lištu DIN
Ne |

## Soubory ke stažení

* [Katalog GHI-210](https://www.elvac.eu/ipc/download/Guanghsing/datasheet/GHI-210.pdf)
