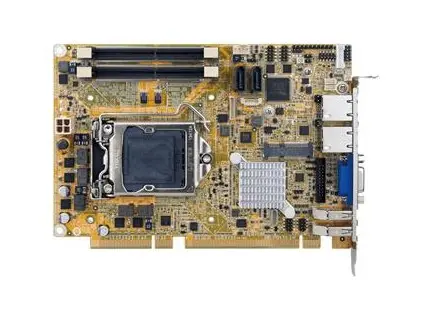

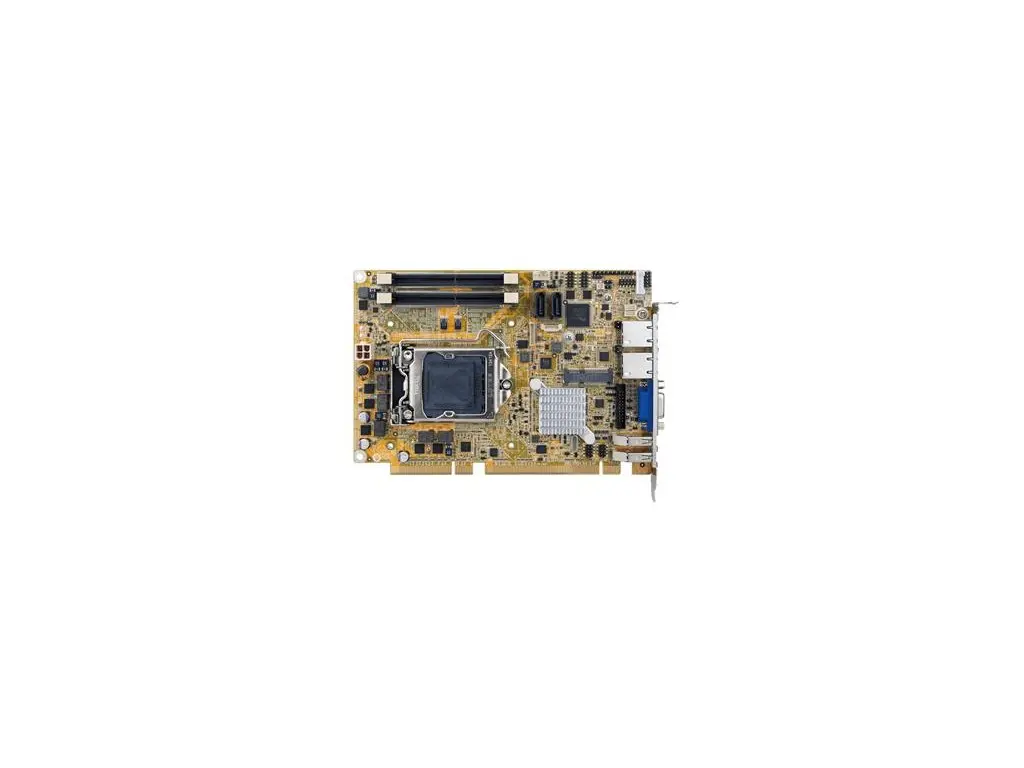

HPCIE-C236-R10

Half-size PICMG 1.3 CPU card supports LGA 1151 Intel® Xeon® E3, Core™ i3/Pentium®/Celeron® CPU with Intel® C236, ECC & non-ECC DDR4 SO-DIMM, VGA, iDP, Intel GbE, USB 3.0, mSATA, SATA, PCIe Mini, Intel® AMT and RoHS

Specification:

• Supported processors: LGA 1151 Intel® Xeon® E3, Core™ i3, Pentium® and Celeron® with Intel® C236 processor.
• Memory: supports ECC and non-ECC DDR4 SO-DIMMs.
• Graphics: VGA and iDP (DisplayPort interface) for monitor connections.
• Intel GbE (Gigabit Ethernet) for network connectivity.
• USB: USB 3.0 support for fast data transfers.
• Storage: mSATA and SATA support for connecting hard drives or SSDs.
• PCIe Mini: Slot for additional PCIe Mini expansion cards.
• Intel® AMT: Support for Intel® Active Management Technology, which enables remote management and diagnostics.
• RoHS: Compliant with the RoHS directive, which means it is free of certain hazardous substances that are harmful to the environment.
