# IMBA-H110-ECO-R10 - min objednávka 10 PACK/položka 1ks

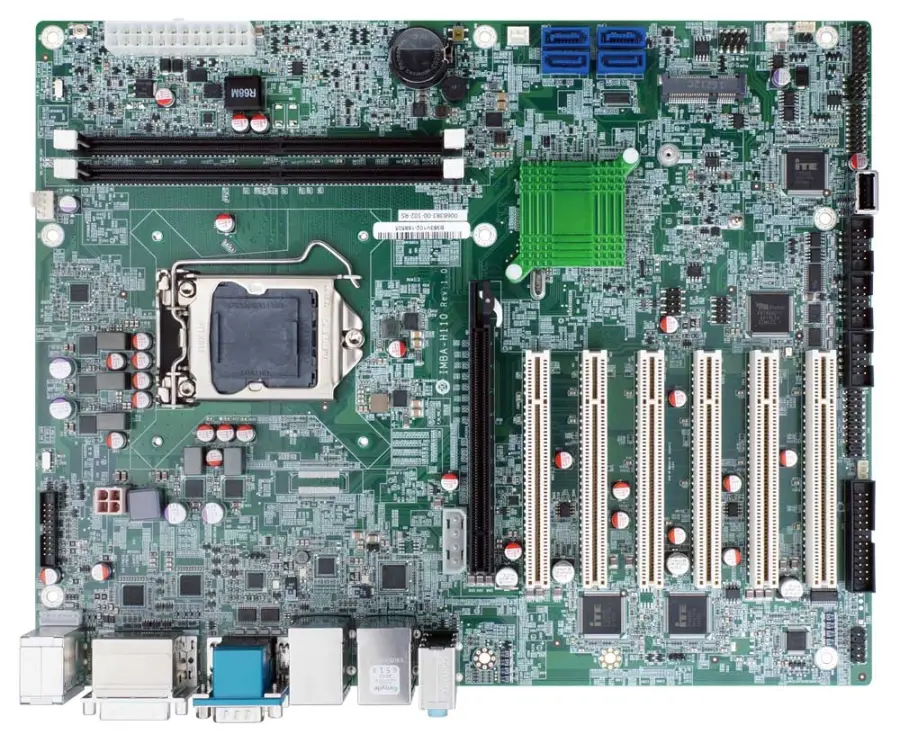

ATX Motherboard supports LGA1151 6th Generation Intel® Core i7/i5/i3, Celeron® Pemtium® processor,DDR4,Dual Independent Displays DVI-I/HDMI/iDP, Dual®Intel GbE LAN, USB 3.0, SATA 6Gb/s,HD Audio,ECO Packing, RoHS

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 122560014853 |
| Warranty | 24 |
| Warranty for companies | 24 |
| Brand | IEI |

## Podrobný popis

ATX Motherboard supports LGA1151 6th Generation Intel® Core i7/i5/i3, Celeron® Pemtium® processor,DDR4,Dual Independent Displays DVI-I/HDMI/iDP, Dual®Intel GbE LAN, USB 3.0, SATA 6Gb/s,HD Audio,ECO Packing, RoHS Specification:Processor: supports 6th generation LGA1151 Intel® Core™ i7/i5/i3, Celeron® and Pentium® processors for powerful computing performance.Memory: DDR4 memory support for fast and efficient system performance.Displays: Support for two independent displays with DVI-I, HDMI and iDP connectivity.Dual Intel GbE LAN (Gigabit Ethernet) for fast and reliable network connectivity.USB: USB 3.0 support for fast data transfers between devices.SATA 6Gb/s support for connecting hard drives or SSDs for data storage.Audio: HD Audio support for high quality audio output.ECO packaging:ECO packaging means that the product is environmentally friendly and minimizes the amount of packaging material.RoHS: Compliant with RoHS Directive

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Min. provozní teplota | Min. provozní teplota
-20 °C |
| Max. provozní teplota | Max. provozní teplota
60 °C |
| Ethernet | Ethernet
10/100/1000 Mbps |
| Celkový počet LAN portů | Celkový počet LAN portů
2 |
| Počet sériových portů | Počet sériových portů
5 |
| Počet USB portů | Počet USB portů
9 |
| čipset / CPU | čipset / CPU
H110 |
| Pasivní chlazení | Pasivní chlazení
Ne |
| Rozšiřující sloty | Rozšiřující sloty
mini PCIe; PCI |
| Provedení | Provedení
ATX board |

## Soubory ke stažení

* [Katalog IMBA-H110](https://www.elvac.eu/ipc/download/iei/datasheet/IMBA-H110.pdf)
