# IMBA-Q170-ECO-R10 - min objednávka 10 PACK/položka 1ks

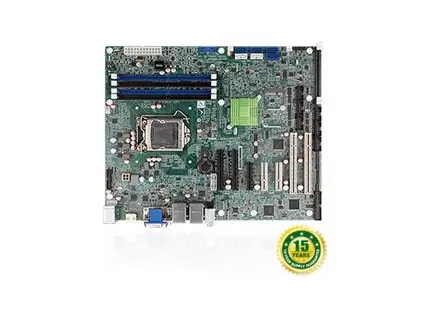

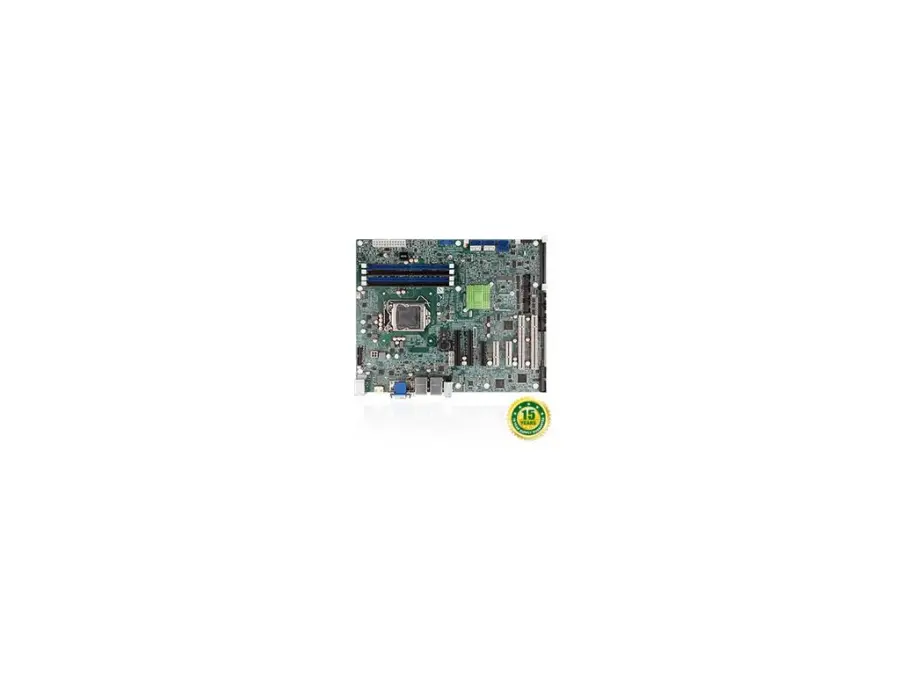

ATX Motherboard supports 14nm LGA1151 Intel® Core™   Intel® Q170, DDR4, Three Independent Displays VGA/ DVI-D / HDMI 2.0/ Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, ECO packing and RoHS

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 122560014782 |
| Warranty | 24 |
| Warranty for companies | 24 |
| Brand | IEI |

## Podrobný popis

ATX Motherboard supports 14nm LGA1151 Intel® Core™   Intel® Q170, DDR4, Three Independent Displays VGA/ DVI-D / HDMI 2.0/ Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, ECO packing and RoHS  Specification:Processor support: the board supports 14nm LGA1151 Intel Core™ Intel® Q170 processors, which includes various Intel Core i7/i5/i3 and other processor models.Memory Support: The board is compatible with DDR4 memory, enabling high memory capacity and speed to optimize performance.Graphics Outputs: The board supports three independent displays with VGA, DVI-D and HDMI 2.0 outputs, allowing for expanded display options and multi-monitor operation.Network Interface: The board features dual Intel® PCIe GbE LAN ports, providing fast and reliable network connectivity.USB and storage interfaces: The board features USB 3.0 for fast data transfers and supports SATA 6Gb/s for fast storage connections.Sound System: The board features HD Audio, which means support for high quality audio output.ECO packaging: the board comes in ECO packaging, which can help to protect the environment and reduce waste.RoHS: The board is RoHS compliant, which means it complies with environmental standards to limit the use of hazardous substances.

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Min. provozní teplota | Min. provozní teplota
-20 °C |
| Max. provozní teplota | Max. provozní teplota
60 °C |
| Ethernet | Ethernet
10/100/1000 Mbps |
| Celkový počet LAN portů | Celkový počet LAN portů
2 |
| Počet sériových portů | Počet sériových portů
6 |
| Počet USB portů | Počet USB portů
12 |
| čipset / CPU | čipset / CPU
Q170 |
| Pasivní chlazení | Pasivní chlazení
Ne |
| Rozšiřující sloty | Rozšiřující sloty
mini PCIe; PCI |
| Provedení | Provedení
ATX board |

## Soubory ke stažení

* [Katalog IMBA-Q170-i2](https://www.elvac.eu/ipc/download/iei/datasheet/IMBA-Q170-i2.pdf)
