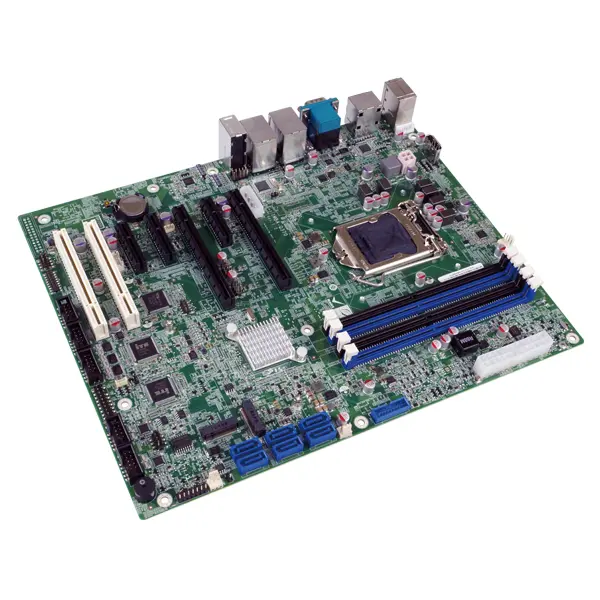

# IMBA-Q370-R20

ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 122560014791 |
| Warranty | 24 |
| Warranty for companies | 24 |
| Brand | IEI |

## Podrobný popis

ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS  Specification:Processor support: the board supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processors with LGA1151 socket and 14nm architecture.Memory: The board supports DDR4 memory, which provides high speed and memory capacity for efficient system operation.Graphics Interfaces: The board allows for a trio of independent displays for expanded workspace and flexibility when using multiple monitors.Network connectivity: the board is equipped with two dual GbE LANs for fast and reliable network connectivity.M.2 and SATA Interfaces:The board has an M.2 slot for easy connection of SSD storage and supports SATA 6Gb/s for data storage connections.USB 3.2: The board features USB 3.2 for fast data transfers between peripherals and the computer.HD Audio: The board has integrated HD Audio, which provides quality audio output.RoHS: The board meets RoHS standards for environmentally friendly restrictions on the use of hazardous substances.

## Soubory ke stažení

* [Katalog IMBA-Q370 - kopie](http://www.elvac.eu/ipc/download/iei/datasheet/IMBA-Q370%20-%20kopie.pdf)
