title: "ITG-100-AL-E1/2GB-R10"
category: "Industrial Computers > Fanless PC > Embedded computers"
---

**Kategorie:** Industrial Computers > Fanless PC > Embedded computers

# ITG-100-AL-E1/2GB-R10

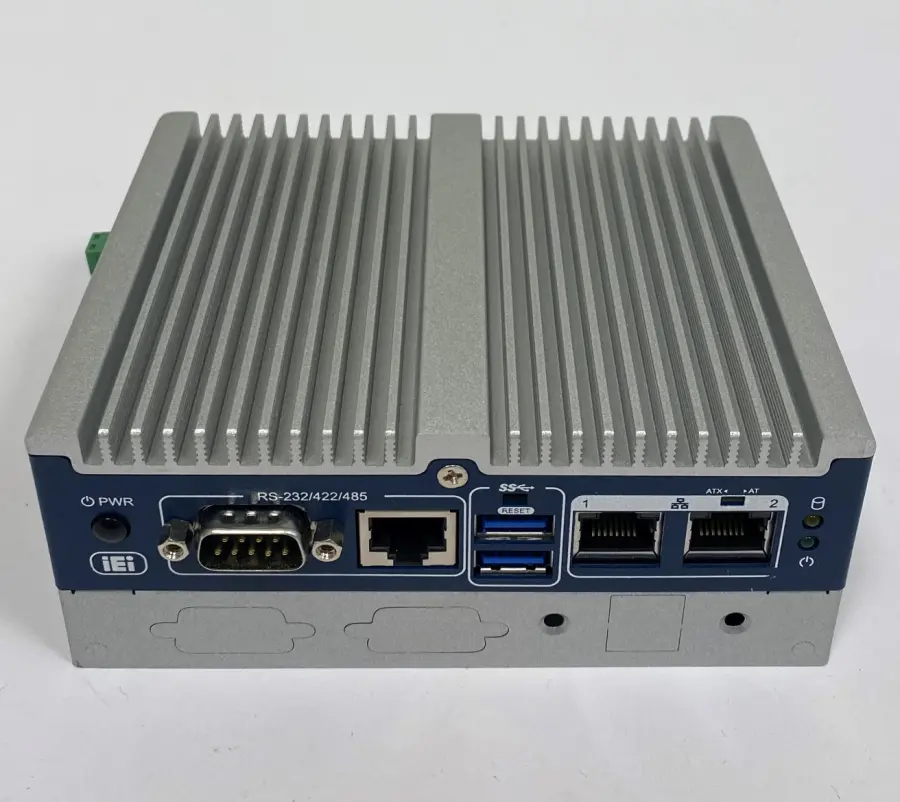

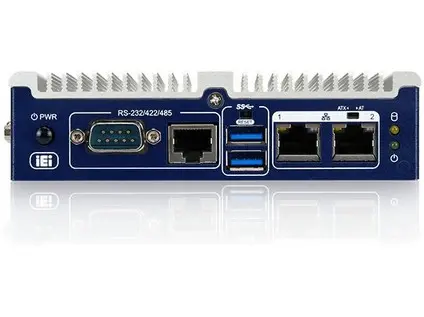

Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), 2GB DDR3L pre-installed memory, VGA, M.2, COM, 12V DC, Flexible I/O Expansion and RoHS

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 101524010335 |
| Warranty | 24 |
| Warranty for companies | 24 |
| Brand | IEI |

## Podrobný popis

Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), 2GB DDR3L pre-installed memory, VGA, M.2, COM, 12V DC, Flexible I/O Expansion and RoHS  Specification:Processor: the Intel® Apollo Lake x5-E3930, a 1.3GHz dual-core processor (up to 1.8GHz) that provides sufficient performance for basic tasks and low-power applications.Memory: the embedded system is equipped with 2 GB of pre-installed DDR3L memory, which enables smooth running of applications and multitasking.Graphics: The system includes a VGA output for easy connection to a monitor or display.Storage: The embedded system features an M.2 interface for easy connection of fast storage.I/O Expansion: the system offers flexible input and output (I/O) expansion, allowing the system to be tailored to specific application needs.The embedded system has a COM port for connecting serial devices.Power: The system is powered by 12V DC, which simplifies installation and compatibility with different power sources.Fanless design: The fanless design makes the system more resistant to dust, dirt and mechanical damage, making it suitable for industrial and automation applications.

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Min. provozní teplota | Min. provozní teplota
-20 °C |
| Max. provozní teplota | Max. provozní teplota
60 °C |
| Ethernet | Ethernet
10/100/1000 Mbps |
| Celkový počet LAN portů | Celkový počet LAN portů
2 |
| Počet sériových portů | Počet sériových portů
4 |
| Montáž na lištu DIN | Montáž na lištu DIN
Ano |
| Montáž do skříně RACK | Montáž do skříně RACK
Ne |
| Montáž na panel | Montáž na panel
Ano |
| Počet USB portů | Počet USB portů
2 |
| Napájení | Napájení
12V DC |
| HDD/SSD | HDD/SSD
2,5'' SATA HDD / SSD; eMMC; MicroSD; mSATA |
| čipset / CPU | čipset / CPU
Apollo Lake SoC |
| Wi-Fi | Wi-Fi
Volitelně |
| Pasivní chlazení | Pasivní chlazení
Ano |
| Rozšiřující sloty | Rozšiřující sloty
M.2; mini PCIe |

## Soubory ke stažení

* [Katalog ITG-100-AL](https://www.elvac.eu/ipc/download/iei/datasheet/ITG-100-AL.pdf)
