# KSGE103B keyboard with trackball and backlight, panel

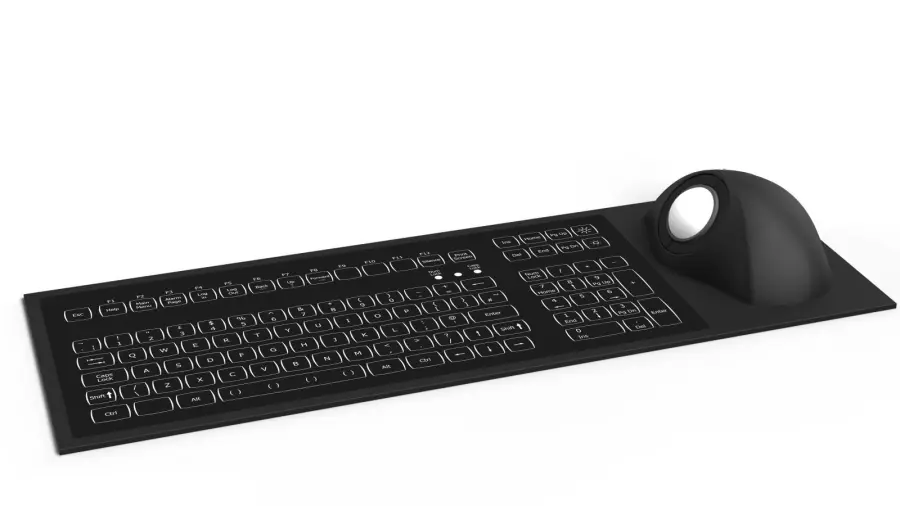

KSGE103 backlit waterproof keyboard with ergonomic trackball

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 151002260005 |
| Code 2 | KSGE103BXXUSB-WLED |
| Warranty | 12 |
| Warranty for companies | 12 |
| Brand | NSI |

## Podrobný popis

New LED backlit keyboard with high water and dust protection (IP67), designed for applications requiring durability, ergonomics and precision. Featuring an ergonomic 38mm optical trackball, this multi-function model is the ideal choice for demanding industrial and outdoor environments. It is available in both panel mount and desktop versions.Key featuresIP67 rated: waterproof design for reliable operation even in harsh environments.Separate numeric and control keys.Long-lasting LED backlighting.Intelligent LED light settings.Integrated trackball and scroll wheel.Technical specificationsPanel mounting: aluminium frame, silicone gasket and components protected by a metal cover panel for increased durability. Dimensions 464.5 x 167.5 x 78.2 mm, weight 1.2 kg.Benchtop version: robust steel construction with industrial epoxy finish in grey. Dimensions 468 x 171 x 73 mm, weight 1.4 kg.The keyboard connects via a 1.8m USB cableand requires no external power supply or special drivers.Durable design: black polyester keys with chemical resistance and embossing for better scratch resistance.This waterproof, LED-backlit keyboard is the ideal solution for environments with high demands for reliability and ergonomics and durabilityMilitary and defense systems: Resistance to water, dust and mechanical wear and tear make this keyboard suitable for military applications where it must withstand harsh field conditions and is easy to use at night thanks to its backlighting.Transportation and logistics terminals: In rail, airport or port terminals where equipment operates outdoors or in dusty warehouses and needs a keypad that can withstand dirt and harsh climatic conditions.Food and pharmaceutical industry: The keypad is ideal for cleanrooms where equipment must be sanitized frequently and it is important to avoid contamination, while the backlight makes it easy to operate even in dim light.Public information kiosks and ticketing systems: Outdoor self-service kiosks and ticket machines require keypads that are both weatherproof and highly visible in low light.

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Způsob připojení | Způsob připojení
drátové |
| Polohovací zařízení | Polohovací zařízení
Trackball |
| Krytí | Krytí
IP65 |
| Materiál klávesnice | Materiál klávesnice
Kovová |
| Numerická část | Numerická část
Ano |
| Podsvícení | Podsvícení
Ano |
| Typ montáže | Typ montáže
Panelmount |

## Soubory ke stažení

* [Katalog ksge103-backlit-keyboard](https://www.elvac.eu/ipc/download/NSI/datasheet/ksge103-backlit-keyboard.pdf)
