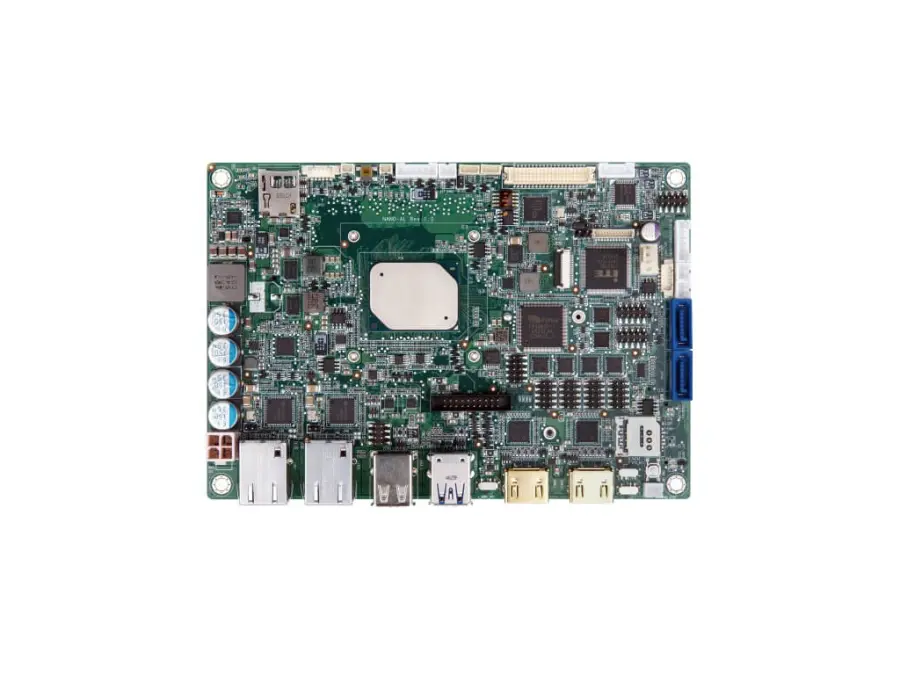

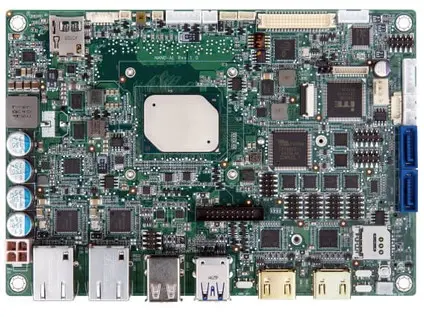

--- title: "NANO-AL-N1-R10" category: "Industrial PC Components > Industrial and Embedded Mainboards > Embedded MB in EPIC format" --- **Kategorie:** Industrial PC Components > Industrial and Embedded Mainboards > Embedded MB in EPIC format # NANO-AL-N1-R10 EPIC SBC supports Intel® 14nm dual-core Celeron® N3350 2.3GHz on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS ## Základní informace | Parametr | Hodnota | | --- | --- | | Unit | pcs | | Code 1 | 122514017002 | | Warranty | 24 | | Warranty for companies | 24 | | Brand | IEI | ## Podrobný popis EPIC SBC supports Intel® 14nm dual-core Celeron® N3350 2.3GHz on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS  Specification:Processor: 2.3GHz Intel® Celeron® N3350 dual-core processor for ample performance and energy-efficient operation.Displays: Dual HDMI, LVDS and iDP (Intelligent Display Port) support for monitor connections and video display.Dual PCIe GbE (Gigabit Ethernet) for fast and reliable network connectivity.USB: USB 3.0 support for fast data transfers between devices.PCIe Mini and M.2 support for storage expansion and SSD connectivity.SATA: SATA 6Gb/s support for hard drives or SSDs for a variety of storage options.Communication:COM interface for serial communication with other devices.Audio: Audio output support for audio applications.RoHS: Compliant with the RoHS directive, which means it is free of certain hazardous substances that are harmful to the environment. ## Technická specifikace | Vlastnost | Hodnota | | --- | --- | | Min. provozní teplota | Min. provozní teplota -20 °C | | Max. provozní teplota | Max. provozní teplota 70 °C | | Ethernet | Ethernet 10/100/1000 Mbps | | Celkový počet LAN portů | Celkový počet LAN portů 2 | | Počet sériových portů | Počet sériových portů 6 | | Počet USB portů | Počet USB portů 6 | | čipset / CPU | čipset / CPU Apollo Lake SoC | | Pasivní chlazení | Pasivní chlazení Ne | | Rozšiřující sloty | Rozšiřující sloty M.2; mini PCIe | | Provedení | Provedení Epic NANO board | ## Soubory ke stažení * [Katalog NANO-AL](https://www.elvac.eu/ipc/download/iei/datasheet/NANO-AL.pdf)
