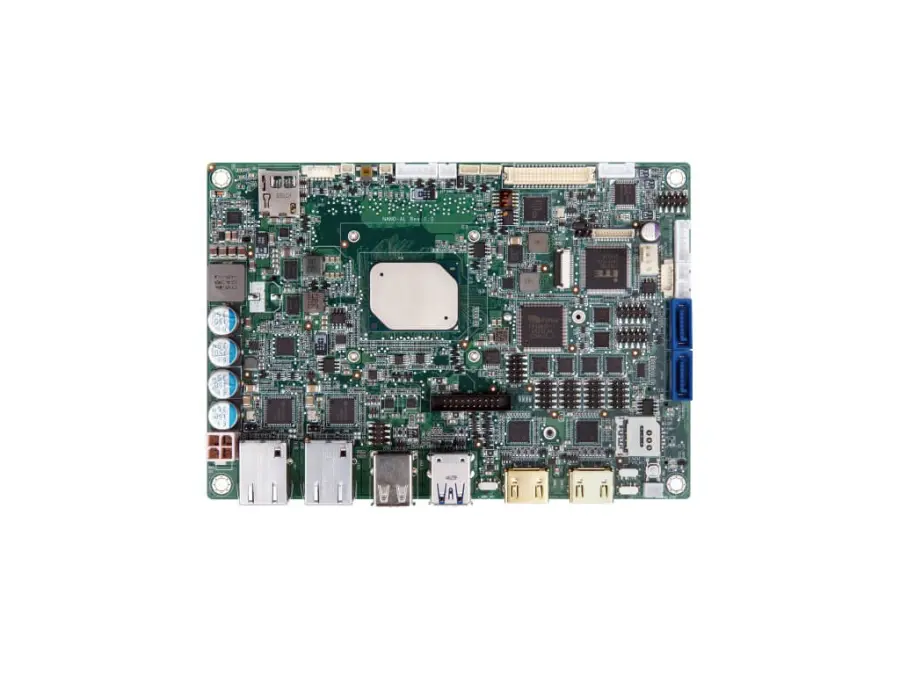

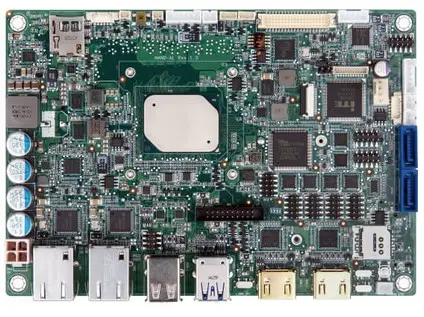

--- title: "NANO-AL-N2-R10" category: "Industrial PC Components > Industrial and Embedded Mainboards > Embedded MB in EPIC format" --- **Kategorie:** Industrial PC Components > Industrial and Embedded Mainboards > Embedded MB in EPIC format # NANO-AL-N2-R10 EPIC SBC supports Intel® 14nm quad-core Pentium® N4200 2.5GHz on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS ## Základní informace | Parametr | Hodnota | | --- | --- | | Unit | pcs | | Code 1 | 122514017003 | | Warranty | 24 | | Warranty for companies | 24 | | Brand | IEI | ## Podrobný popis EPIC SBC supports Intel® 14nm quad-core Pentium® N4200 2.5GHz on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS  Specification:Processor: the EPIC SBC is equipped with a 2.5 GHz quad-core Intel® Pentium® N4200 processor, providing sufficient performance for many embedded applications.Display: The SBC supports dual display outputs with HDMI, LVDS, and iDP connectivity, enabling display on multiple screens or devices.Network connectivity: the EPIC SBC features dual PCIe GbE interfaces for fast and reliable network connectivity.Interfaces: the SBC features USB 3.0 for fast connection of peripherals, PCIe Mini and M.2 for expandability and connection of various modules, SATA 6Gb/s for data storage connection, COM for serial communication and audio for audio functions.RoHS: The system is RoHS compliant, which means it complies with environmental standards to limit the use of hazardous substances.  ## Technická specifikace | Vlastnost | Hodnota | | --- | --- | | Min. provozní teplota | Min. provozní teplota -20 °C | | Max. provozní teplota | Max. provozní teplota 70 °C | | Ethernet | Ethernet 10/100/1000 Mbps | | Celkový počet LAN portů | Celkový počet LAN portů 2 | | Počet sériových portů | Počet sériových portů 6 | | Počet USB portů | Počet USB portů 6 | | čipset / CPU | čipset / CPU Apollo Lake SoC | | Pasivní chlazení | Pasivní chlazení Ne | | Rozšiřující sloty | Rozšiřující sloty M.2; mini PCIe | | Provedení | Provedení Epic NANO board | ## Soubory ke stažení * [Katalog NANO-AL](https://www.elvac.eu/ipc/download/iei/datasheet/NANO-AL.pdf)
