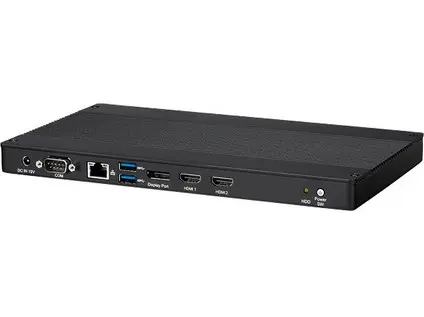

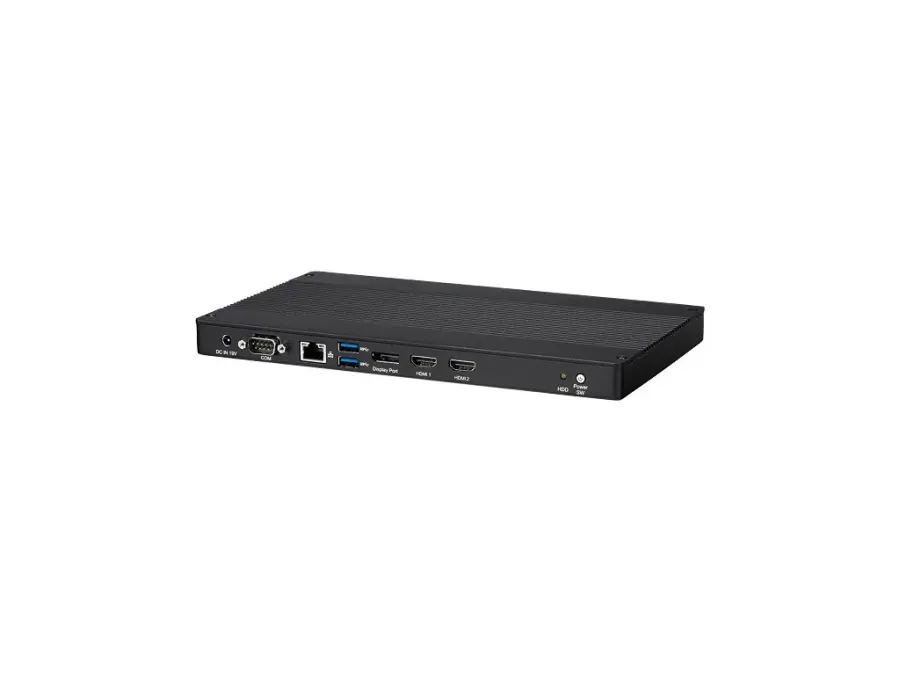

NDiS B336R Nexcom

Compact and slim fanless Embedded Computer Powered by 6th generation Quad Core Intel® AtomTM x7-E3950 Processor, 2.0GHz for Digital Signage.
Tripe video output (HDMI/DP support 4K2K resolution)
Supports W-Fi, GPS, and 3G module

Specification:
CPU: Quad core Intel® Atom™ x7-E3950 processor, 2.0GHz
Chipset: SoC (codenamed Apollo Lake-I)
Graphics: Intel® HD Graphics 500 series
Main Memory: 2 x 204-pin SO-DIMM socket, supports DDR3L 1600MHz non-ECC, Un-buffered memory up to 16GB
I/O Interface:
   5 x USB3.0, 1 x RS-232, 1 x GbE LAN with LEDs
   2 x HDMI Port, 1 x Display Port
   1 x Audio-out, 1 x MIC-in
   1 x HDD LED
   1 x 19V DC in, 1 x Power Switch
   2 x Antenna Hole for Wi-Fi or TV Tuner
Storage: 1 x SATA 2.5”
Expansion:
   1 x mini-PCIe slot (full size)
   1 x NGFF (M.2) 2230 for optional WLAN
   1 x SIM Slot
Power Supply: 1 x external 65W AC/DC power adapter (Input: 100VAC to 240VAC / Output: DC+19VDC)
Operating temperature: -10°C to 60°C (SSD) ; 0°C to 40°C (HDD)
Storage temperature: -25°C to 80°C
Humidity: 10 to 90% (non-condensing)
Certification: CE approval, FCC Class A
Dimensions: 259mm (W) x 147mm (D) x 21mm (H)
Operating System: Win10/ Linux
