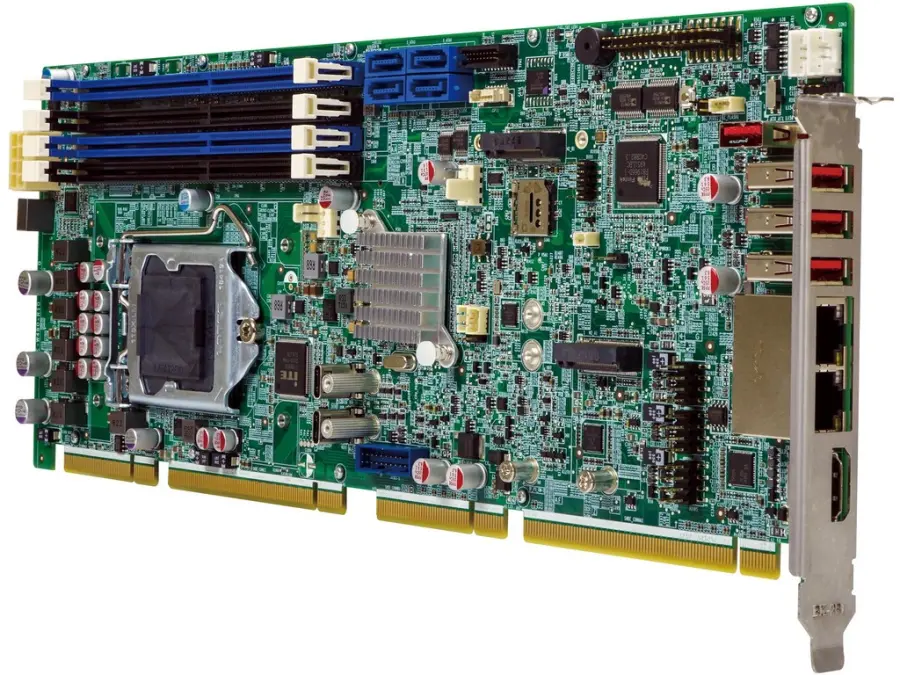

# PCIE-Q470-R10

The PICMG 1.3 full-size processor card supports the 10th generation LGA1200 Intel® socket.

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 122040010010 |
| Warranty | 24 |
| Warranty for companies | 24 |
| Brand | IEI |

## Podrobný popis

Full-size PICMG 1.3 CPU Card supports LGA1200 Intel® 10th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q470E, DDR4, HDMI, Type-C DP, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio, iAMT and RoHS  Specification:Processor support: the card supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3/Pentium®/Celeron® processors with the Q470E chipset, providing high performance and a wide range of options for computing tasks.Memory support: the card supports DDR4 memory, offering high speed and capacity for efficient processing.Graphics Outputs:The card is equipped with HDMI and Type-C DP outputs, allowing you to connect a variety of display devices.The card features dual Intel® 2.5GbE LAN ports, ensuring fast and reliable network connectivity.USB and storage interfaces: The card has USB 3.2 ports for fast data transfers and supports SATA 6Gb/s for data storage connections. It also features an M.2 interface for additional storage options.Audio: The card features HD Audio for high quality audio output.iAMT: iAMT (Intel Active Management Technology) is a technology that enables remote management and monitoring of the system.RoHS: The card is RoHS compliant, which means it complies with environmental standards to limit the use of hazardous substances.

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Max. provozní teplota | Max. provozní teplota
60 °C |
| Ethernet | Ethernet
2,5 Gbps |
| Celkový počet LAN portů | Celkový počet LAN portů
2 |
| Počet sériových portů | Počet sériových portů
4 |
| Počet USB portů | Počet USB portů
12 |
| čipset / CPU | čipset / CPU
Q470 |
| Pasivní chlazení | Pasivní chlazení
Ne |
| Rozšiřující sloty | Rozšiřující sloty
M.2 |
| Provedení | Provedení
Fullsize CPU karta |

## Soubory ke stažení

* [Katalog PCIE-Q470](https://www.elvac.eu/ipc/download/iei/datasheet/PCIE-Q470.pdf)
