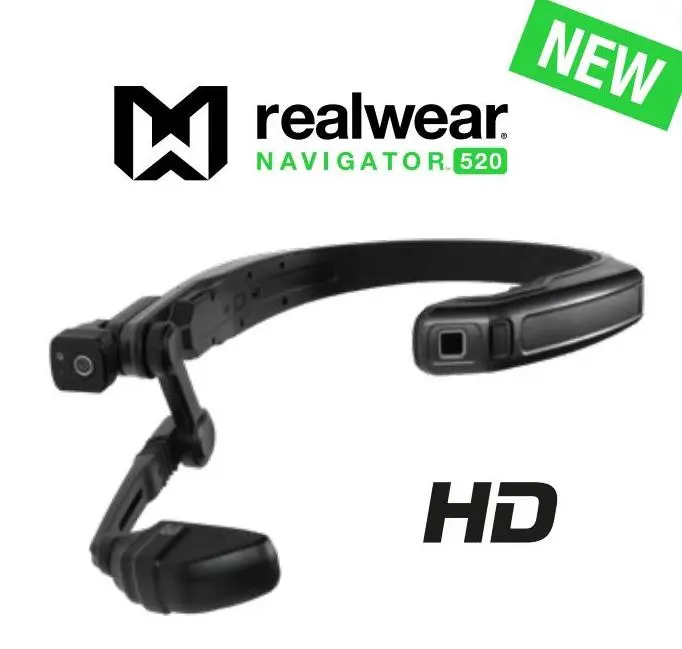

# RealWear Navigator™ 520

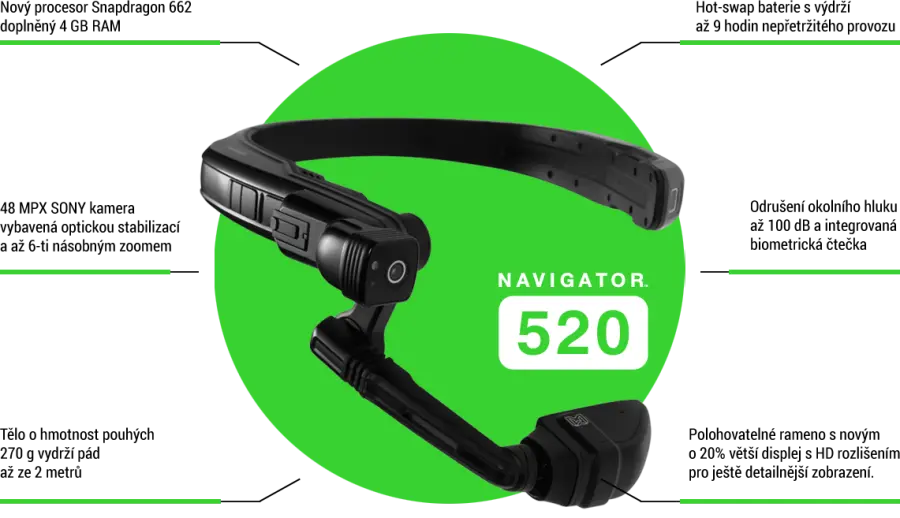

Robust RealWear Navigator™ 520 voice-controlled headset

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 100500000007 |
| Code 2 | 127128 |
| Warranty | 12 |
| Warranty for companies | 12 |
| Brand | REALWEAR |

## Podrobný popis

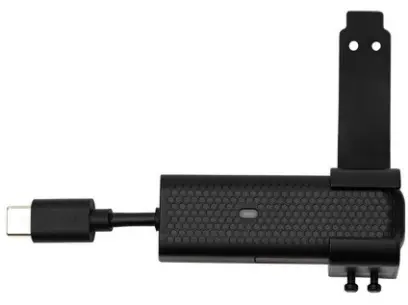

SPECIAL OFFER - FROM 15.8.2023 TO 31.12.2023 for each purchased Realwear Navigator 500/520 device you will receive a 4G LTE MODEM worth €250 FOR FREE.Realwear wearable Android tablet features a monocular 0.35" 24-bit LCD display with 1280x720 (HD) resolution, offers 24° field of view, voice control with 4 digital microphones with ambient noise cancellation and voice recognition up to 100 dBA, built-in 48MP camera with optical image stabilization and up to 6x zoom, resolution up to 1080p at 60 frames per second. It's all powered by an 8-core Snapdragon 662 processor clocked at 2.0 GHz, Adreno 610 GPU - OpenGL® ES 3.2 & OpenCL™ 2.0, with 64GB of flash memory and 4GB of RAM, expandable storage with a microSD slot up to 512GB. The operating system is Android 11 (AOSP) + WearHF™.In terms of connectivity, the Navigator 520 provides Bluetooth 5.1, WiFi 802.11 a/b/g/n/ac - 2.4 GHz and 5GHz, GPS, Glonass, BeiDou, Galileo, QZSS, SBAS, NavIC support and dual-frequency GNSS (L1 + L5).Navigator 520 weighs 274g, provides IP66 protection and meets MIL-STD-810H military standard.The wearable tablet is powered by a hot-swappable Lithium Polymer battery with a capacity of 2600 mAh / 10.0 Wh. The tablet can operate in temperatures ranging from -20°C to +50°C with relative humidity of 5% to 95%.

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Min. provozní teplota | Min. provozní teplota
-20 °C |
| Max. provozní teplota | Max. provozní teplota
50 °C |
| Pasivní chlazení | Pasivní chlazení
Ano |
| Krytí | Krytí
IP66 |
| Úhlopříčka | Úhlopříčka
0,35 " |
| Rozlišení displeje | Rozlišení displeje
1280x720 |
| čipset / CPU | čipset / CPU
ARM |
| HDD/SSD | HDD/SSD
Interní; MicroSD |
| USB 3.0 | USB 3.0
1 |
| Wi-Fi | Wi-Fi
Ano |
| Standard | Standard
802.11a; 802.11ac; 802.11b; 802.11g; 802.11n |
| Konektivita | Konektivita
WIFI |
| Operační systém | Operační systém
Android |

## Soubory ke stažení

* [Katalog RW_NAVIGATOR_520](https://www.elvac.eu/ipc/download/REALWEAR/datasheet/RW_NAVIGATOR_520.pdf)
