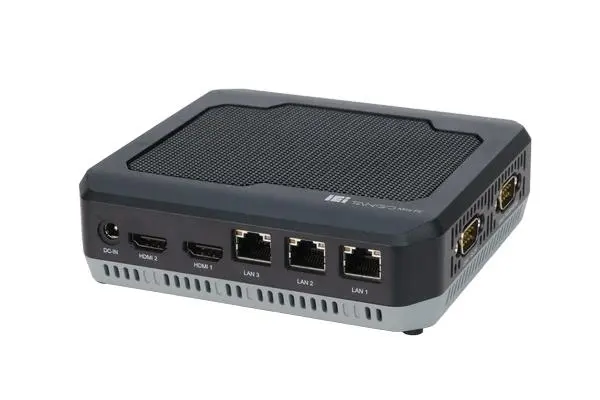

# TANGO-3010-JWC-R10

Fanless system with Intel® Celeron® J6412 2.0 GHz processor (up to 2.6 GHz, quad-core, TDP 10 W), 8 GB built-in memory, 3 x 2.5GbE LAN, 2 x HDMI, 4 x USB, 12V DC, Wifi-6E, RoHS

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 101524010090 |
| Warranty | 24 |
| Warranty for companies | 24 |
| Brand | IEI |

## Podrobný popis

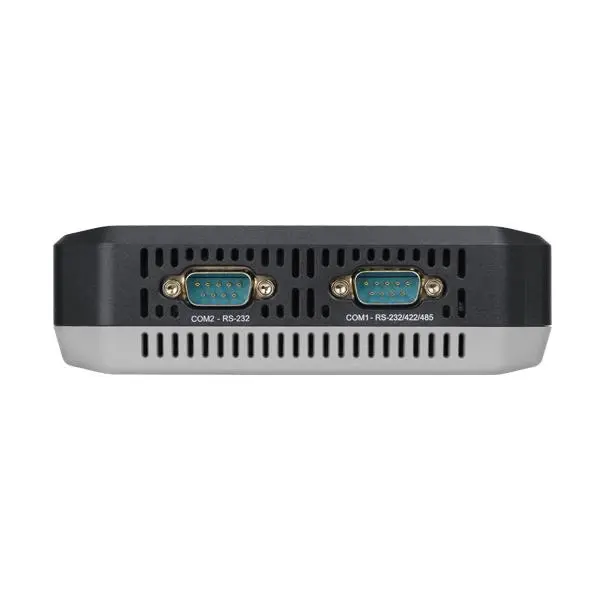

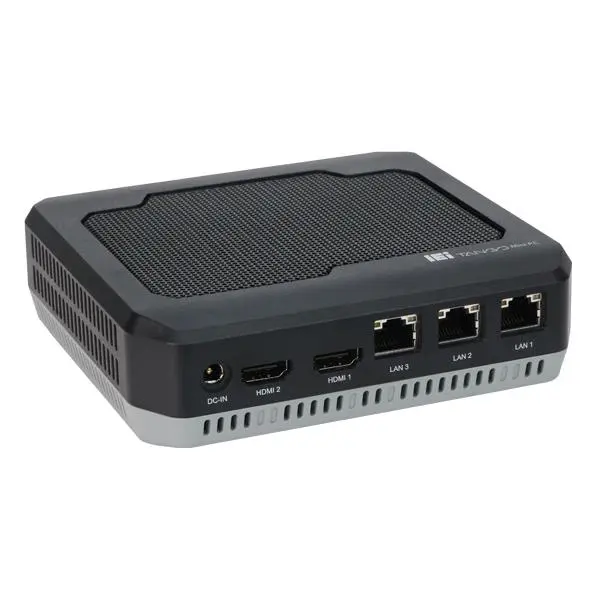

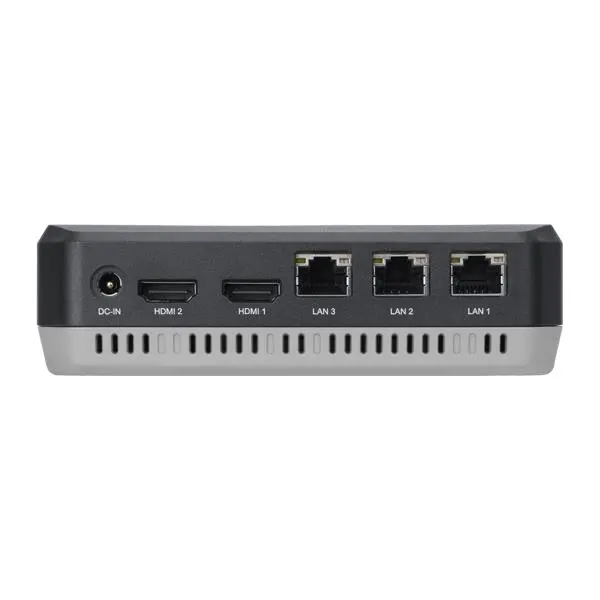

The new ultra-compact TANGO-3010 industrial computer is designed for data acquisition and processing with an emphasis on continuous operation.The system is powered by an Intel® Celeron® J6412 quad-core processor with Intel® UHD graphics and built-in 8 GB LPDDR4x memory to easily handle industrial and commercial tasks. Despite its small size, the system is equipped with a sufficient number of I/Ointerfaces. For high-speed network communication there are three Intel® 2.5 GbE LAN ports, for industrial communication needs there are two RS-232 serial ports, including one for RS-422/485. Connection of peripheral devices is possible via 2x USB 3.2 and 2x USB 2.0 ports. There are options for digital connection of two independent displays in excellent dual display up to 4K via HDMI 1.4b connectors. The TANGO-3010 PC can be equipped with two drives, a classic 2.5" SSD or a more modern high-speed PCIe® Gen3 x4 M.2 NVMe SSD. For wireless communication, the PC offers the latest Wi-Fi 6E and Bluetooth 5.2 technologies. Specification:Processor: the Intel® Celeron® J6412, a quad-core 2.0 GHz (up to 2.6 GHz) processor with a TDP of 10 W, offering sufficient performance for common tasks and applications.Memory: The system is equipped with 8 GB of built-in memory, which allows for smooth running of applications and multitasking.Network Interface: The system has three 2.5GbE LAN ports that enable high-speed and reliable network connectivity.Display: The embedded system has two HDMI outputs, allowing two independent displays to be connected for extended viewing.USB ports: The system has four USB ports for easy connection of peripherals and other devices.Power: The system is powered by 12V DC, simplifying installation and compatibility with a variety of power sources.Wifi-6E: The embedded system is equipped with WiFi-6E, allowing for high-speed wireless internet connectivity.RoHS: The system is RoHS compliant, ensuring greener manufacturing and use.

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Max. provozní teplota | Max. provozní teplota
40 °C |
| Ethernet | Ethernet
2,5 Gbps |
| Celkový počet LAN portů | Celkový počet LAN portů
3 |
| Počet sériových portů | Počet sériových portů
2 |
| Montáž na lištu DIN | Montáž na lištu DIN
Ne |
| Montáž do skříně RACK | Montáž do skříně RACK
Ne |
| Montáž na panel | Montáž na panel
Ne |
| Počet USB portů | Počet USB portů
4 |
| Napájení | Napájení
12V DC |
| HDD/SSD | HDD/SSD
2,5'' SATA HDD / SSD |
| čipset / CPU | čipset / CPU
Elkhart lake SoC |
| Wi-Fi | Wi-Fi
Ano |
| Pasivní chlazení | Pasivní chlazení
Ano |
| Rozšiřující sloty | Rozšiřující sloty
M.2 |

## Soubory ke stažení

* [Katalog TANGO-3010](https://www.elvac.eu/ipc/download/iei/datasheet/TANGO-3010.pdf)
