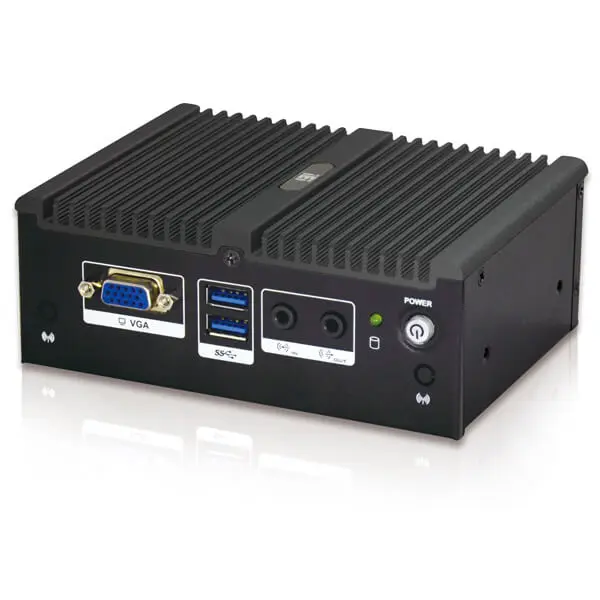

# uIBX-250-BW-N3/2G-R21

Fanless embedded system with Intel® Celeron® N3160 1.6 GHz (up to 2.24 GHz, quad core, TDP 6 W), 2 GB DDR3L pre-installed memory,12 V DC, with RS-232/422/485, USB 3.0, VGA/HDMI, dual Intel® PCIe GbE, RoHS

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 101524010298 |
| Warranty | 24 |
| Warranty for companies | 24 |
| Brand | IEI |

## Podrobný popis

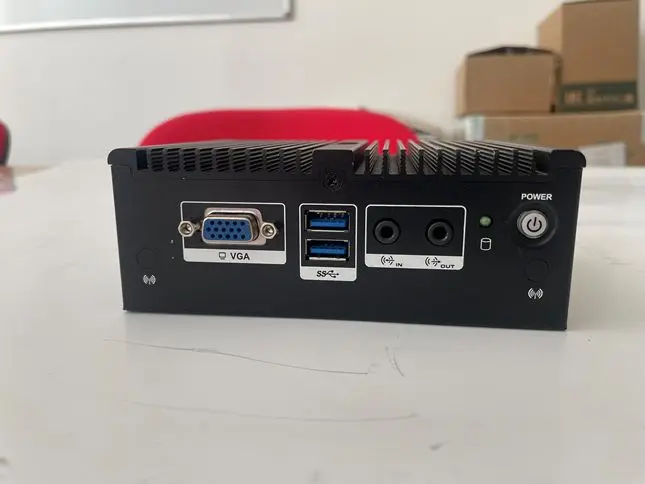

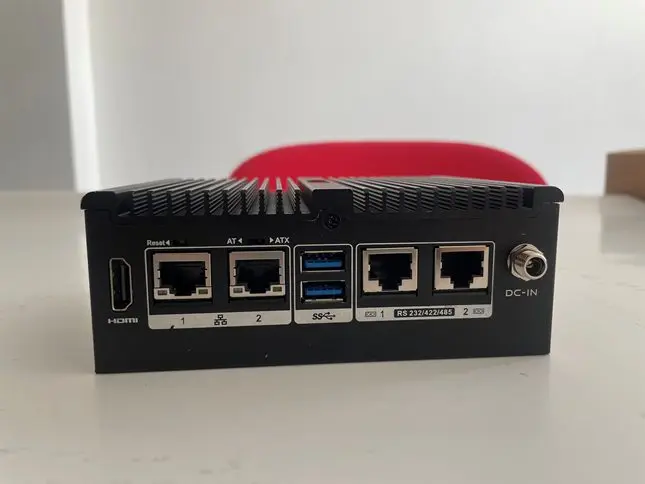

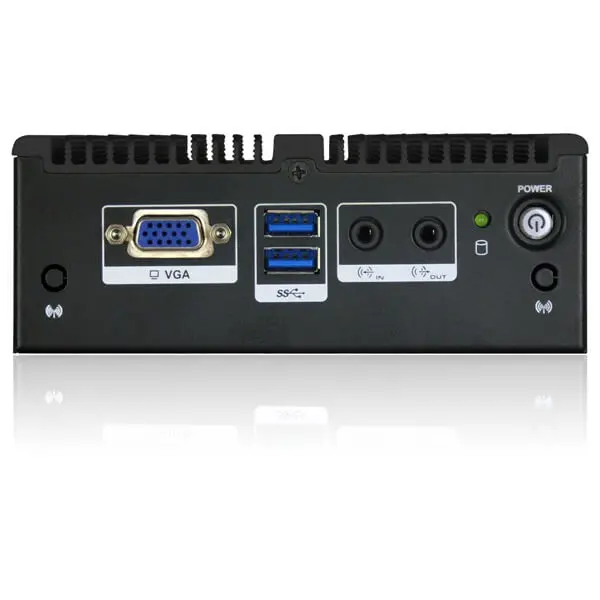

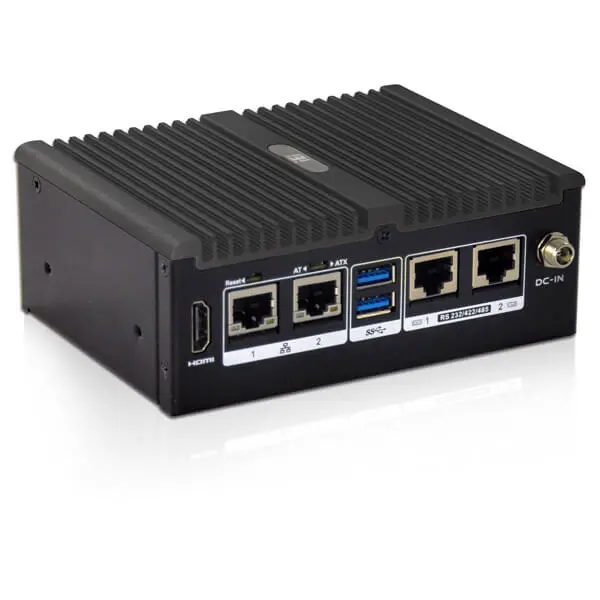

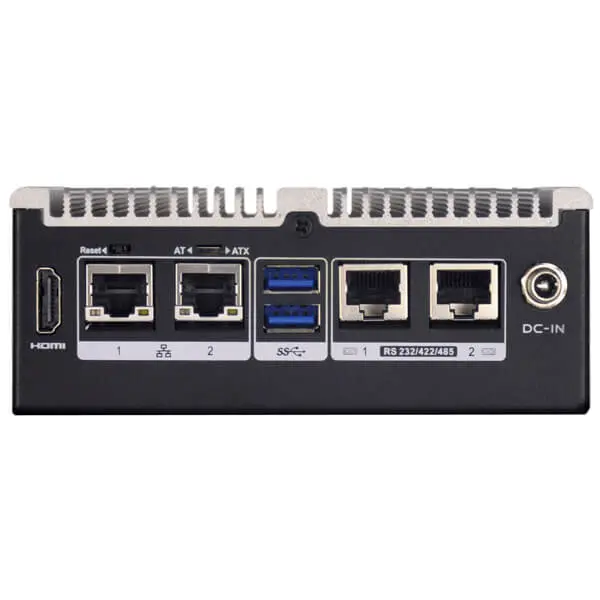

Fanless embedded system with Intel® Celeron® N3160 1.6 GHz (up to 2.24 GHz, quad core, TDP 6 W), 2 GB DDR3L pre-installed memory,12 V DC, with RS-232/422/485, USB 3.0, VGA/HDMI, dual Intel® PCIe GbE, RoHS  Specification:Processor: The embedded system features a 1.6 GHz (up to 2.24 GHz) Intel® Celeron® N3160 processor with four cores, providing sufficient performance for a variety of embedded applications. Its low thermal load (TDP 6 W) allows fanless operation, which increases reliability and minimizes noise.Memory: The embedded system includes 2 GB of pre-installed DDR3L memory, providing sufficient memory capacity to run applications and process data.Power: The system is powered by a 12V DC input, allowing it to be used in a variety of environments and embedded applications.Interfaces: The embedded system features extensive interfaces, including RS-232/422/485 for communication with external devices, USB 3.0 for fast peripheral connections, VGA and HDMI for monitor connections, and dual Intel® PCIe GbE for fast and reliable network connectivity.RoHS: The system is RoHS compliant, which means it complies with environmental standards to limit the use of hazardous substances.

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Min. provozní teplota | Min. provozní teplota
-20 °C |
| Max. provozní teplota | Max. provozní teplota
60 °C |
| Ethernet | Ethernet
10/100/1000 Mbps |
| Celkový počet LAN portů | Celkový počet LAN portů
2 |
| Počet sériových portů | Počet sériových portů
2 |
| Montáž na lištu DIN | Montáž na lištu DIN
Ano |
| Montáž do skříně RACK | Montáž do skříně RACK
Ne |

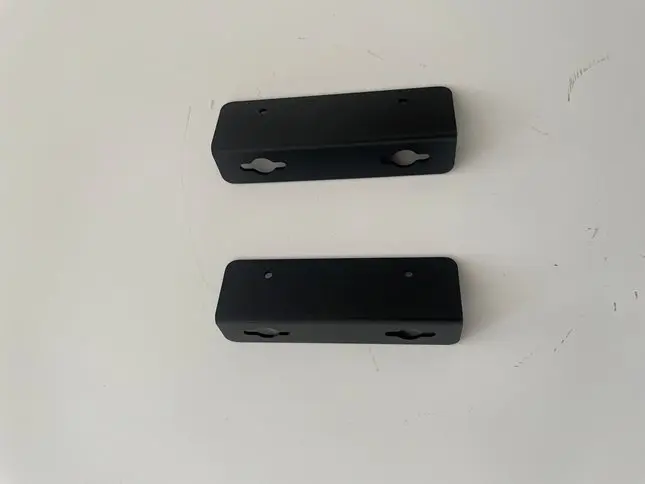

| Montáž na panel | Montáž na panel
Ano |
| Počet USB portů | Počet USB portů
4 |
| Napájení | Napájení
12V DC |
| HDD/SSD | HDD/SSD
2,5'' SATA HDD / SSD |
| čipset / CPU | čipset / CPU
Braswell SoC |
| Wi-Fi | Wi-Fi
Volitelně |
| Pasivní chlazení | Pasivní chlazení
Ano |
| Rozšiřující sloty | Rozšiřující sloty
mini PCIe |

## Soubory ke stažení

* [Katalog uIBX-250-BW_20210910](https://www.elvac.eu/ipc/download/iei/datasheet/uIBX-250-BW_20210910.pdf)
