# uIBX-250-BW-N3/4G-R21

Fanless embedded system with Intel® Celeron® N3160 1.6 GHz (up to 2.24 GHz, quad core, TDP 6 W), 4 GB DDR3L pre-installed memory,
12V DC, with RS-232/422/485, USB 3.2 Gen 1 (5Gb/s), VGA/HDMI™, dual Intel® PCIe GbE, RoHS

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 101524010299 |
| Warranty | 24 |
| Warranty for companies | 24 |
| Brand | IEI |

## Podrobný popis

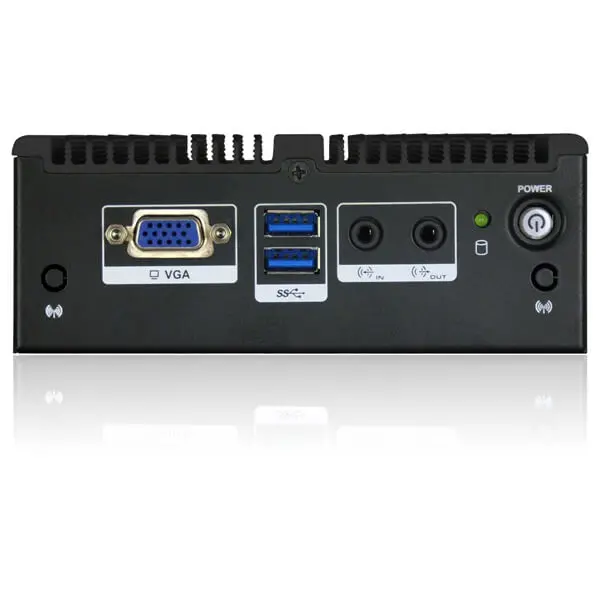

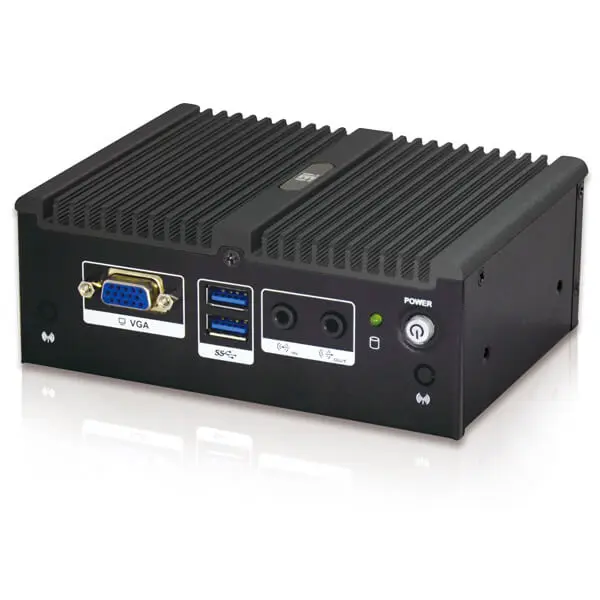

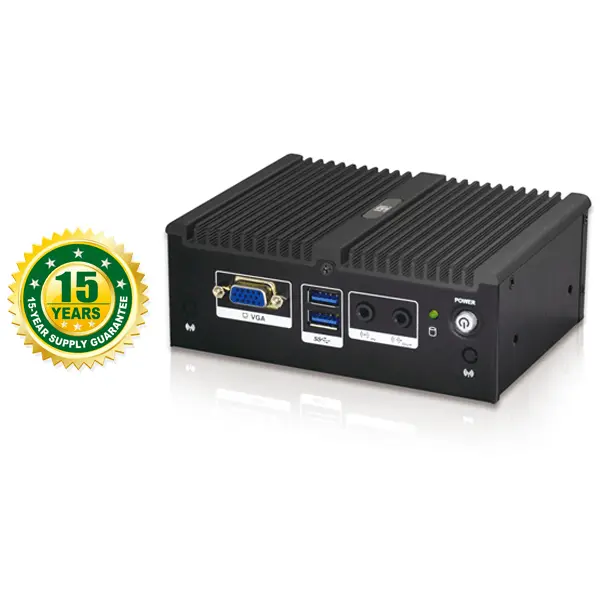

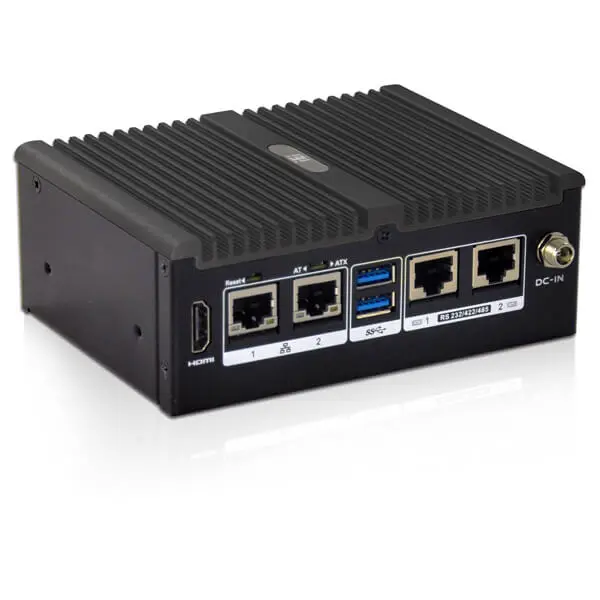

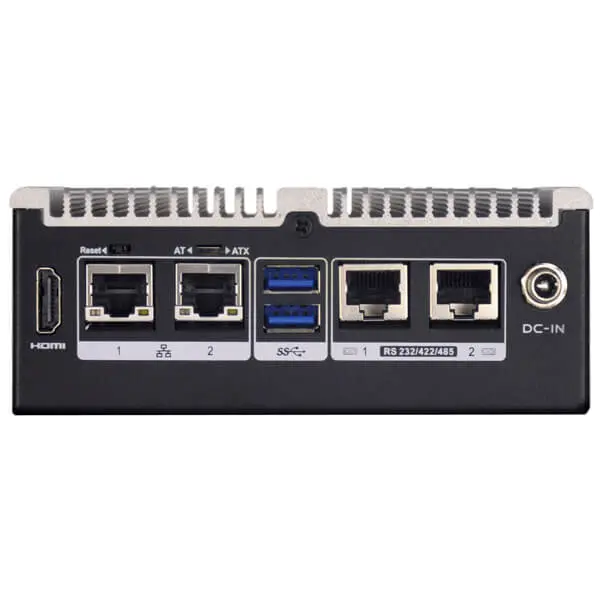

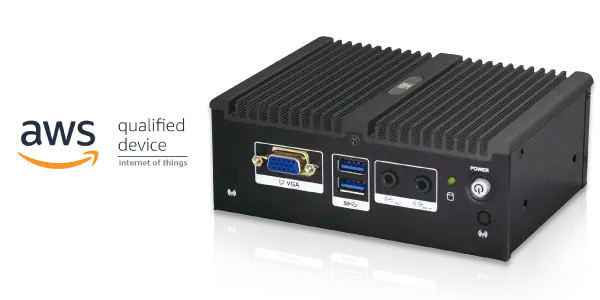

uIBX-250-BW-N3/4G-R21 – Compact Fanless Embedded SystemuIBX-250-BW-N3/4G-R21 is an ultra-compact fanless embedded computer, designed for continuous operation in industrial and commercial applications. With low power consumption, passive cooling and rich connectivity, it is an ideal choice for automation, HMI, industrial control systems or network applications.The basis of the system is Intel® Celeron® N3160 (quad-core, 1.6 GHz / up to 2.24 GHz, TDP 6 W), which provides sufficient performance with minimal power consumption. 4 GB DDR3L memory  is already installed at the factory and the system supports expansion up to 8 GB.Main advantagesFanless design – quiet and maintenance-free operationVery compact dimensions – also suitable for confined spacesTwo Intel® i210 Gigabit Ethernet portsTwo RS-232/422/485 auto-sensing serial portsDual display support (VGA + HDMI)™Expandable via PCIe Mini slotConnectivity and interfacesThe system offers a wide range of interfaces for easy integration into existing solutions:4× USB 3.2 Gen 1 (5 Gb/s)2× GbE LAN (Intel® i210)2× RS-232/422/485 (RJ-45, AFC)1× HDMI™ (up to 4K @ 30 Hz)1× VGA (up to 1920 × 1080 @ 60 Hz)Audio Input/OutputOptional Wi-Fi + Bluetooth (via PCIe Mini)Construction and assemblyThe robust extruded aluminum alloy chassis  ensures efficient passive cooling and a long service life. The system supports both wall mounting and VESA 75/100, allowing for flexible installation on the back of the monitor or in a rack, for example.Typical useIndustrial Automation and Process ControlHMI and operator panelsNetwork and communication applicationsDigital signage and display systemsEdge computing and data collectionTechnical parametersProcessor: Intel® Celeron® N3160, quad-core, 1.6 / 2.24 GHz, TDP 6 WPaměť: 4 GB DDR3L (SO-DIMM, max. 8 GB)Storage: 1× 2.5" SATA 6Gb/s (HDD/SSD)Graphic Outputs: HDMI,™ VGANetwork: 2× GbE Intel® i210Serial Ports: 2× RS-232/422/485USB: 4× USB 3.2 Gen 1Expandable: 1× PCIe Mini (PCIe / USB 2.0 / SATA)Power supply: 12 V DCOperating temperature: -20°C to +60°C (with SSD)Dimensions: 137 × 102.8 × 52 mmWeight: approx. 470 gCertification: CE, FCC, RoHS

## Soubory ke stažení

* [Katalog uIBX-250-BW-N3_4G-R21](http://www.elvac.eu/ipc/download/iei/datasheet/uIBX-250-BW-N3_4G-R21.pdf)
