The UIBX-260-EHL is a fanless embedded system with a quad-core Intel® Celeron® J6412, up to 16GB LPDDR4x memory, and a SATA bay. It features 4 USB 3.2 ports, dual 2.5GbE LAN, optional wireless, 4K HDMI, two M.2 slots, VESA compatibility, and supports
| Unit: | pcs |
| Code 1: | 101524010305 |
| Code 2: | |
| Warranty: | 24 |
| Warranty for companies: | 24 |
| Brand: | IEI |

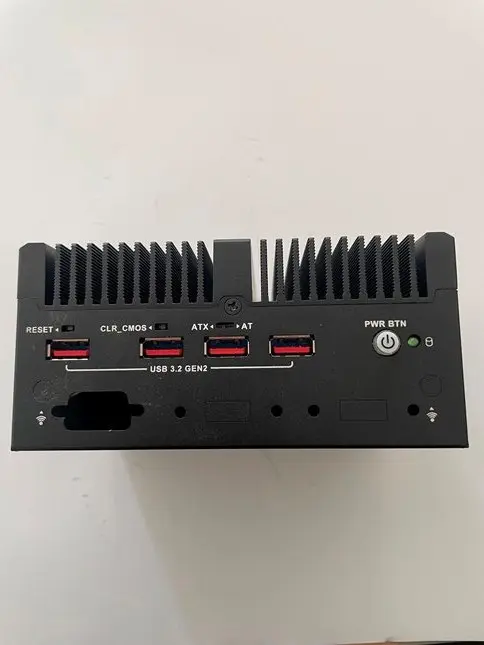

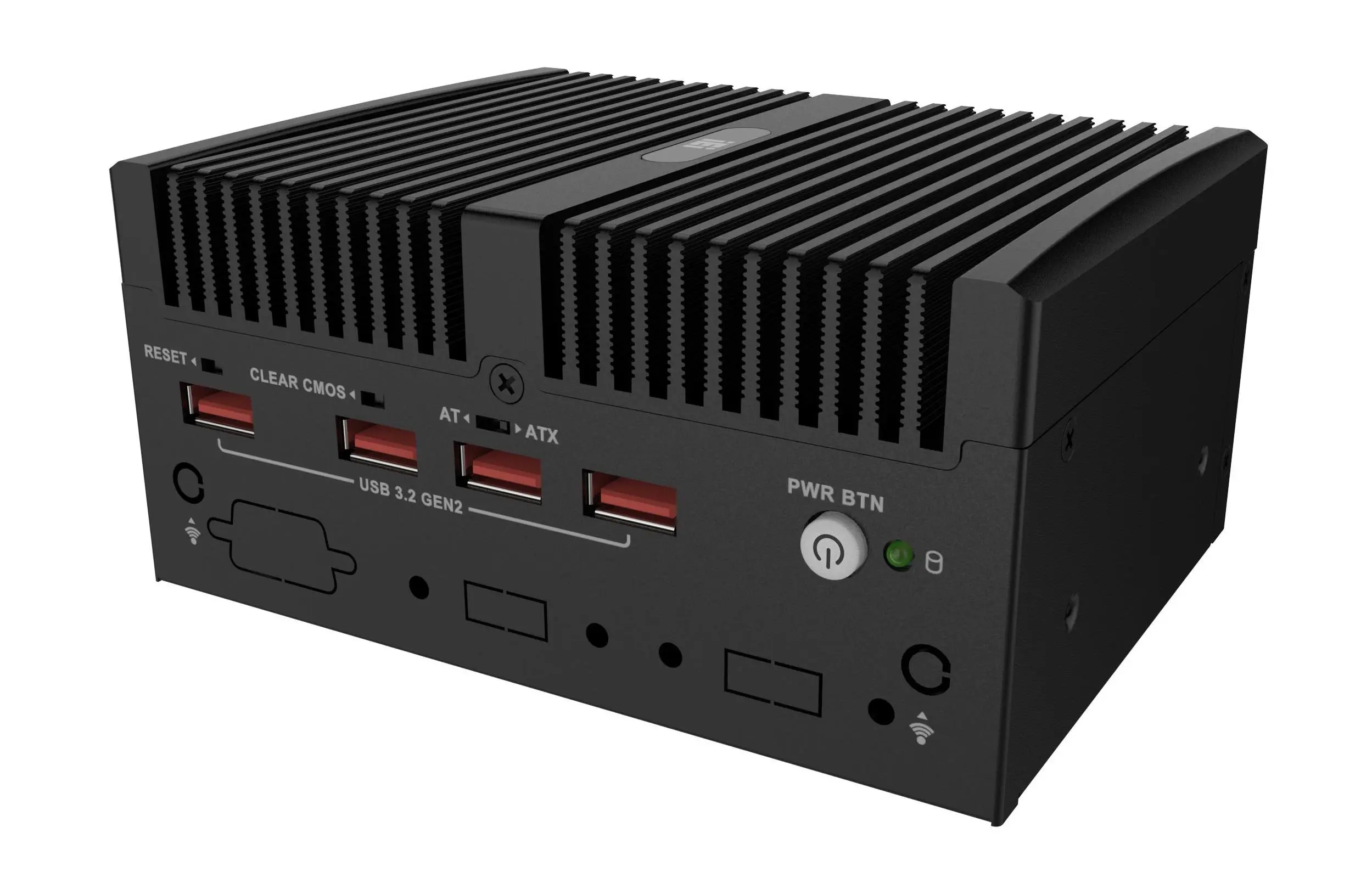

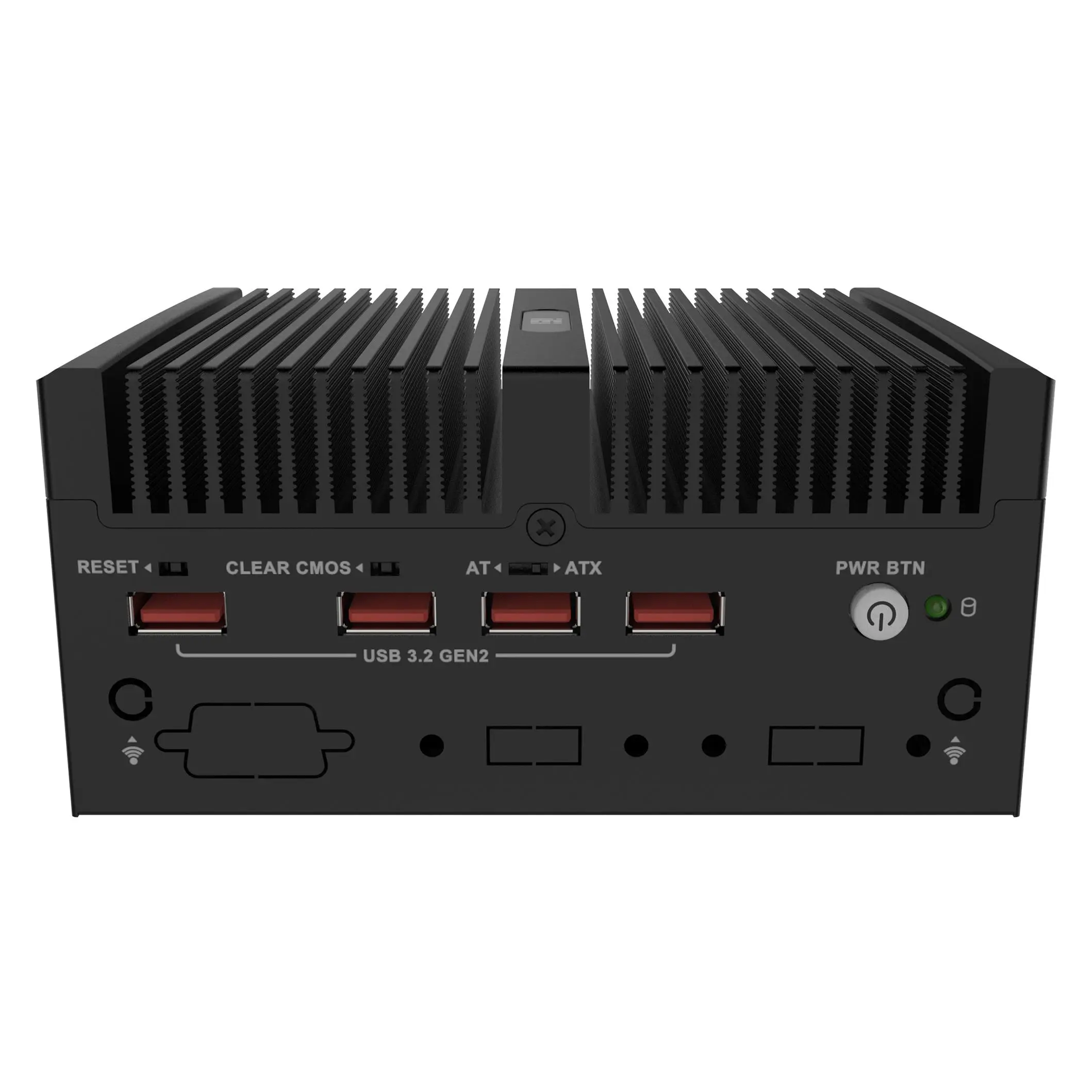

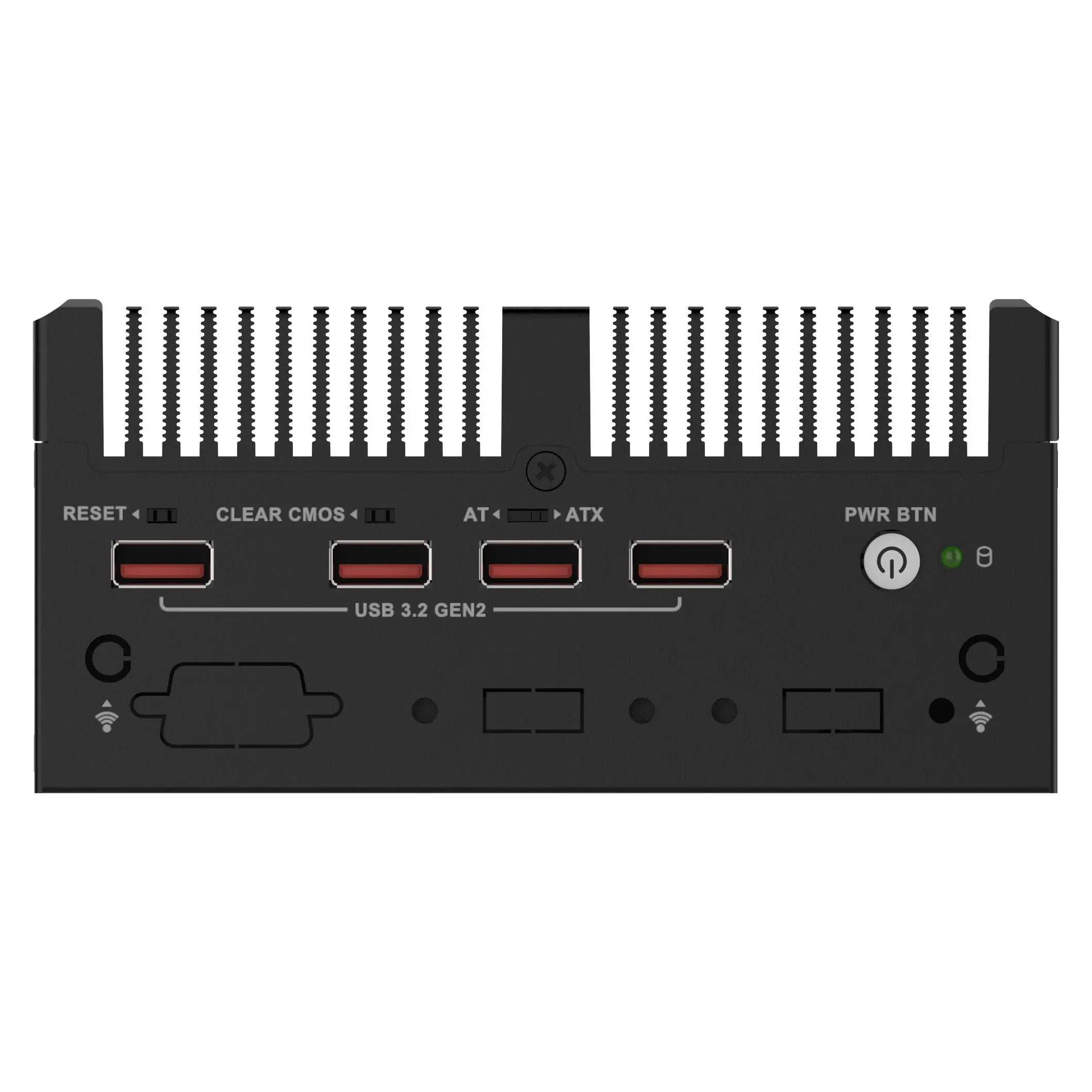

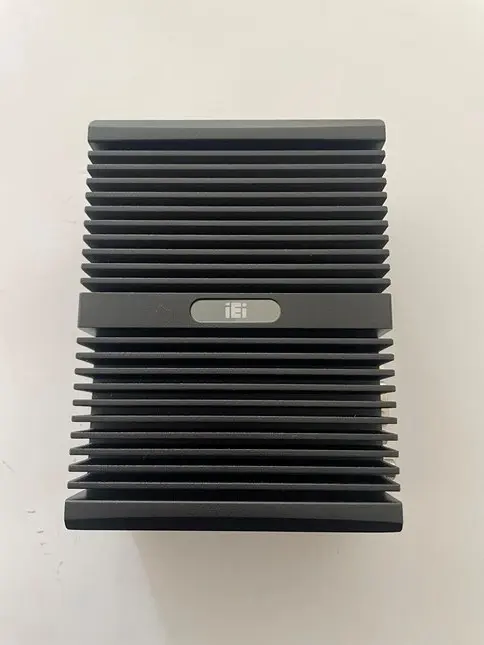

The UIBX-260-EHL is a high-efficiency fanless embedded system equipped with an Intel® Celeron® J6412 quad-core processor. It features onboard LPDDR4x 3200MHz memory, expandable to 16GB, and versatile storage options including a 2.5'' SATA 6Gb/s bay.

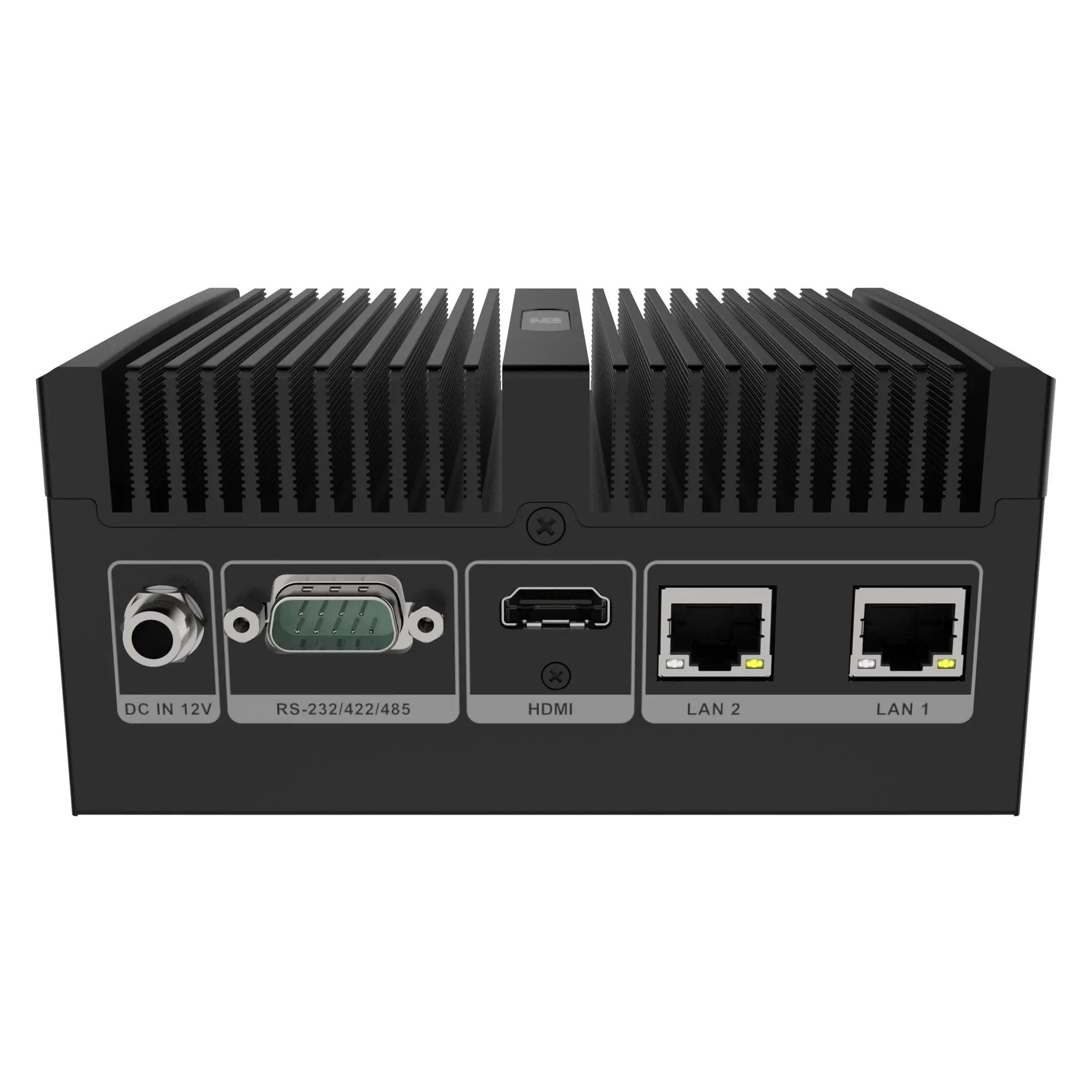

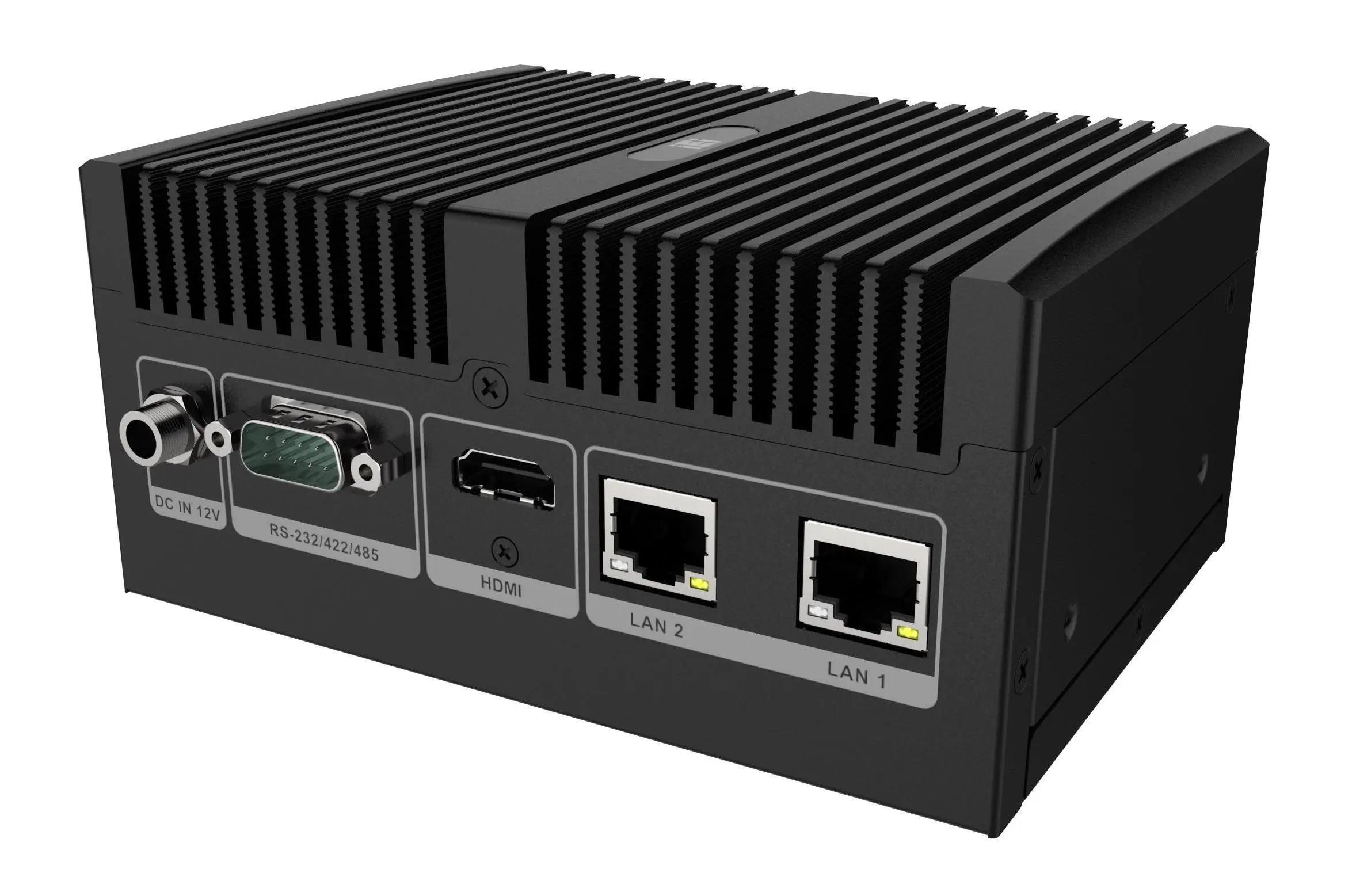

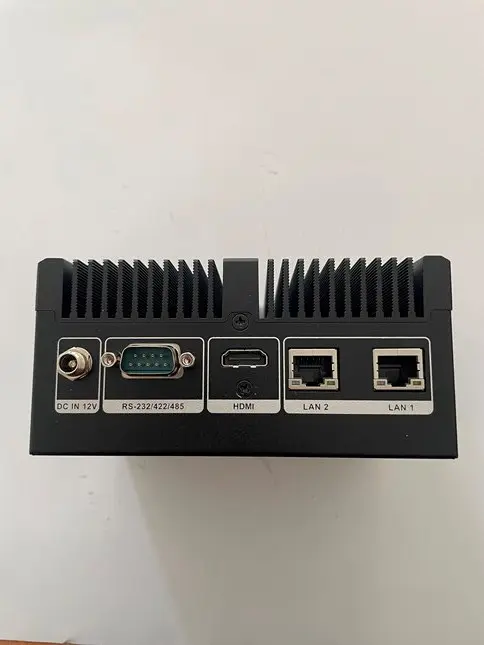

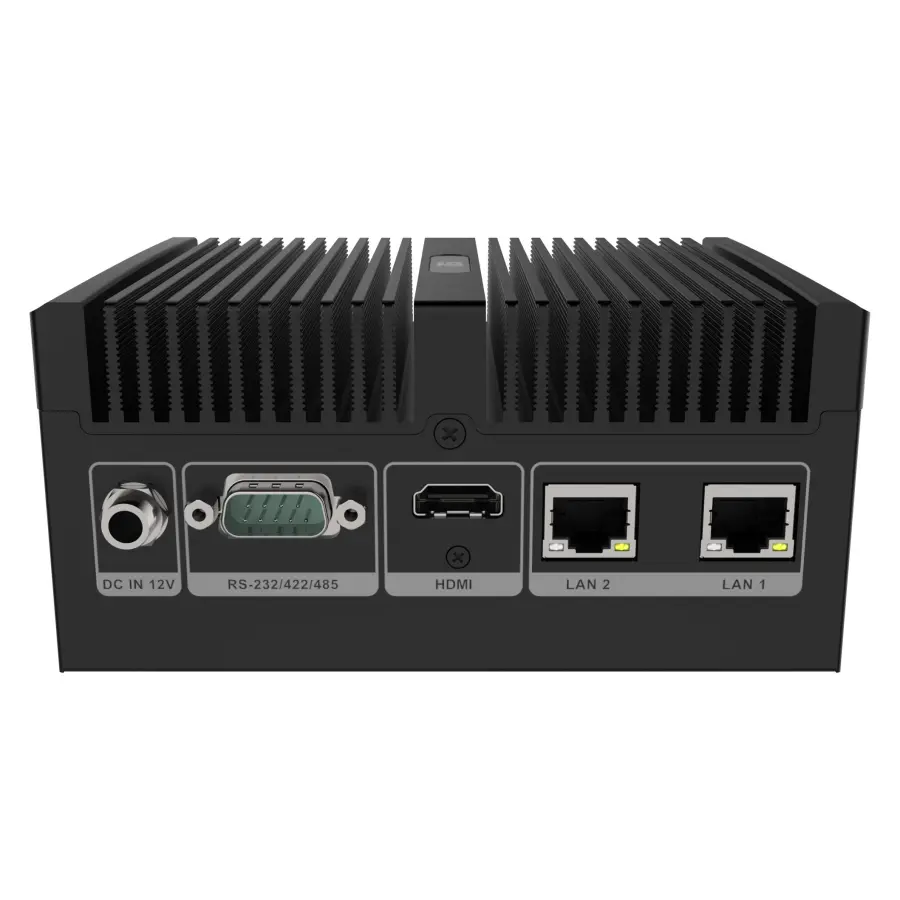

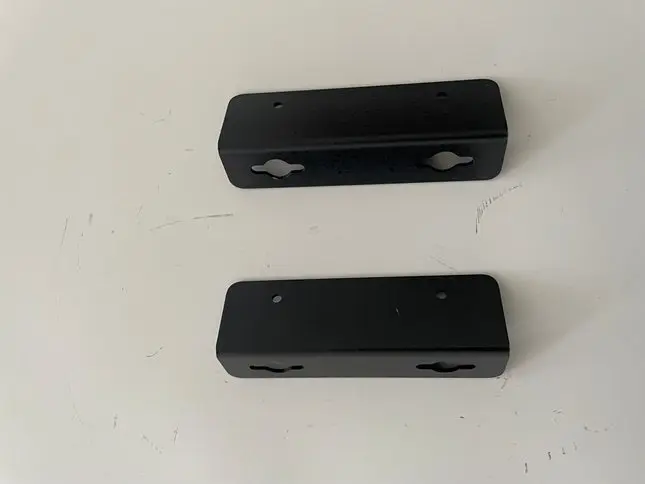

This system offers robust connectivity with four USB 3.2 Gen2 ports and two 2.5 GbE LAN ports, along with an optional wireless module. Its HDMI 1.4b port supports 4K output, making it ideal for media-rich applications. Expansion needs are met with two M.2 slots, and the compact design is VESA mount compatible.
Supporting both Windows® 10/11 and Linux, the UIBX-260-EHL is built for various environments and applications, reliably operating with a wide range of operating systems.
| Min. provozní teplota |
Min. provozní teplota
-10 °C |
| Max. provozní teplota |
Max. provozní teplota
50 °C |
| Ethernet |
Ethernet
2,5 Gbps |
| Celkový počet LAN portů |
Celkový počet LAN portů
2 |
| Počet sériových portů |
Počet sériových portů
2 |
| Montáž na lištu DIN |
Montáž na lištu DIN
Ne |
| Montáž do skříně RACK |
Montáž do skříně RACK
Ne |
| Montáž na panel |
Montáž na panel
Ne |
| Počet USB portů |
Počet USB portů
6 |
| Napájení |
Napájení
12V DC |
| HDD/SSD |
HDD/SSD
2,5'' SATA HDD / SSD |
| čipset / CPU |
čipset / CPU
Elkhart Lake |
| Wi-Fi |
Wi-Fi
Volitelně |
| Pasivní chlazení |
Pasivní chlazení
Ano |
| Rozšiřující sloty |
Rozšiřující sloty
M.2; PCIe |
