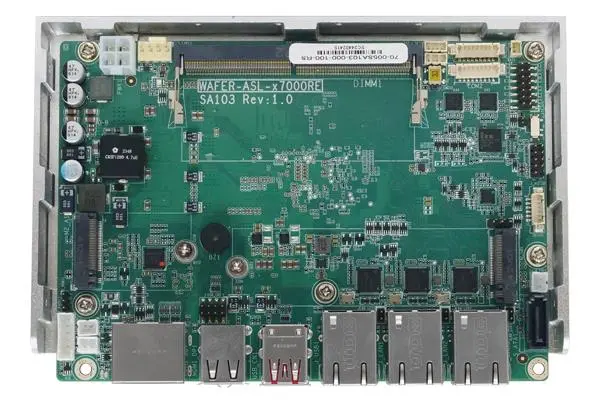

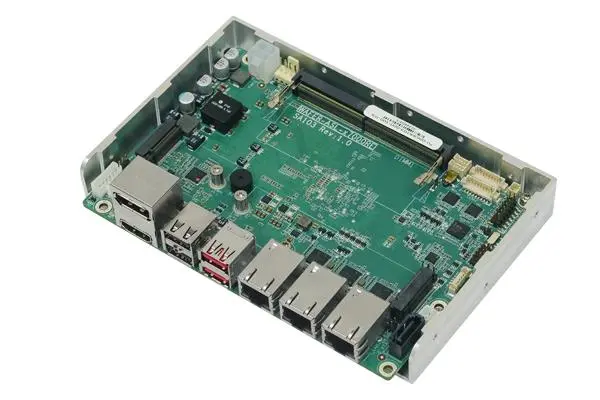

# WAFER-ASL-R3-R10

Powerful and flexible board for industrial applications

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 122510010009 |
| Warranty | 24 |
| Warranty for companies | 24 |
| Brand | IEI |

## Podrobný popis

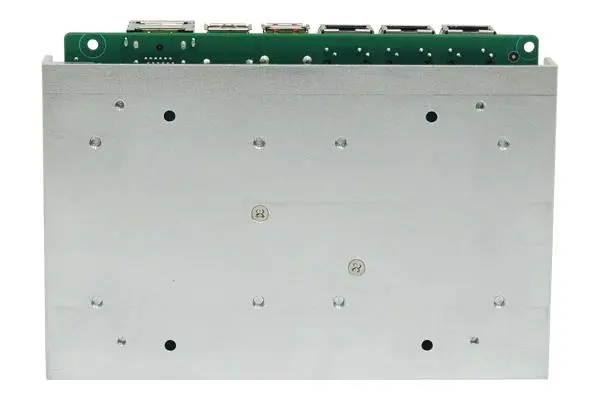

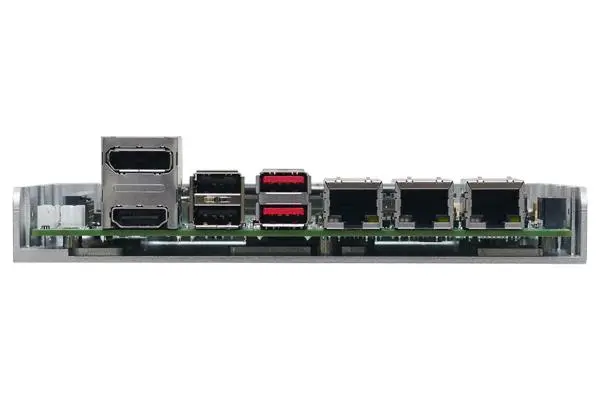

Technical specification:WAFER-ASL-R3-R10Processor: Intel® Atom™ x7433RE (on-board SoC)Memory: 1x DDR5 4800 SO-DIMM, up to 16 GBGraphics: HDMI 2.0 and DP 1.4, both up to 4096 x 2160 @ 60HzNetwork connectivity: 3x Intel® I226-IT 2.5GbE LAN portsI/O Interface:2x USB 3.2 Gen 22x USB 2.01x SATA 6Gb/s2x RS-232/422/485Extensions:1x M.2 A Key (2230)1x M.2 M Key (2280)Power supply: 12V-28V DCOperating conditions:Temperature: -40 °C to 85 °CHumidity: 5-95% (non-condensing)Dimensions: 146 mm x 102 mmIntegrated heat sink: Metal drawer-shaped heat sink for reliable heat dissipation.

## Soubory ke stažení

* [Katalog WAFER-ASL](https://www.elvac.eu/ipc/download/iei/datasheet/WAFER-ASL.pdf)
