Embedded MB PC/104

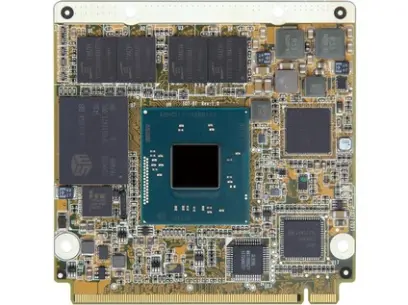

Modul Qseven® Rev. 2.0 podporuje dvoujádrový procesor Intel® Atom™ E3825 (6 W), vestavěný 2GB DDR3L, LVDS, DDI, GbE, SATA 3 Gb/s, USB 3.0, SDIO, audio a RoHS.

Qseven® Rev. 2.0 module supports Intel® Atom™ dual-core processor E3825 (6W), On-board 2GB DDR3L, LVDS, DDI, GbE, SATA 3Gb/s, USB 3.0, SDIO, Audio, -40°C~85°C and RoHS

Modul Qseven® Rev. 2.0 podporuje čtyřjádrový procesor Intel® Atom™ E3845 (10 W), vestavěný 2GB DDR3L, LVDS, DDI, GbE, SATA 3 Gb/s, USB 3.0, SDIO, audio a RoHS.

Qseven® Rev. 2.0 module supports Intel® Atom™ quad-core processor E3845 (10W), On-board 2GB DDR3L, LVDS, DDI, GbE, SATA 3Gb/s, USB 3.0, SDIO, Audio, -40°C~85°C and RoHS

Základní deska pro modul Qseven® Rev. 2.0

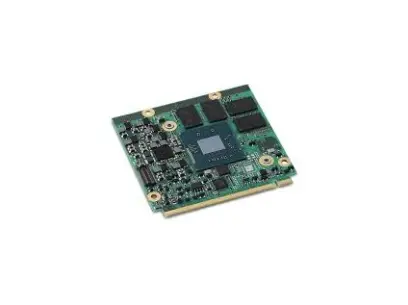

Qseven module with Intel Atom E3845, quad core, 4 GB DDR3L, 8GB eMMC, -40°C to 85°C

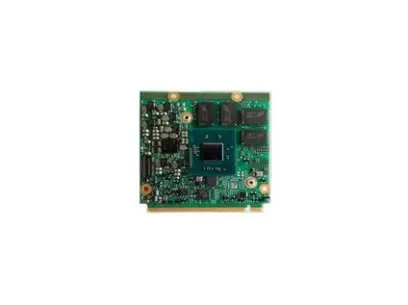

Qseven module with Intel Atom E3826, dual core, 4 GB DDR3L, 8GB eMMC, -40°C to 85°C

Qseven module with Intel Atom E3845, quad core, 4 GB DDR3L, 8GB SATA SSD, -40°C to 85°C

Qseven module with Intel Atom E3815, single core, 2 GB DDR3L, 8GB eMMC, -40°C to 85°C

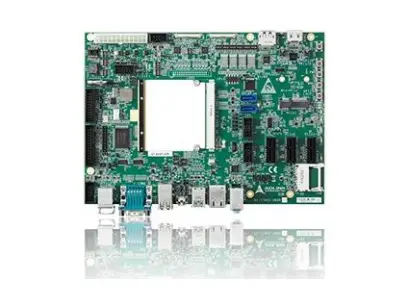

Qseven Reference Carrier Board for Qseven compliant modules, MXM2 230-pin connector, 170mm x 170mm

Q7-Starterkit with Q7-BASE carrier board, SD card, USB stick and ATX and power supply (without Q7 module and cooling solution).

Qseven module with Intel Celeron N3010, dual core, 2 GB DDR3L, 8 GB eMMC, 0°C to 60°C
