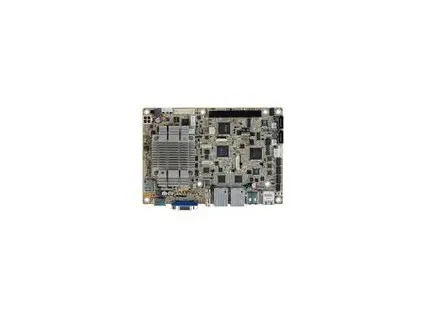

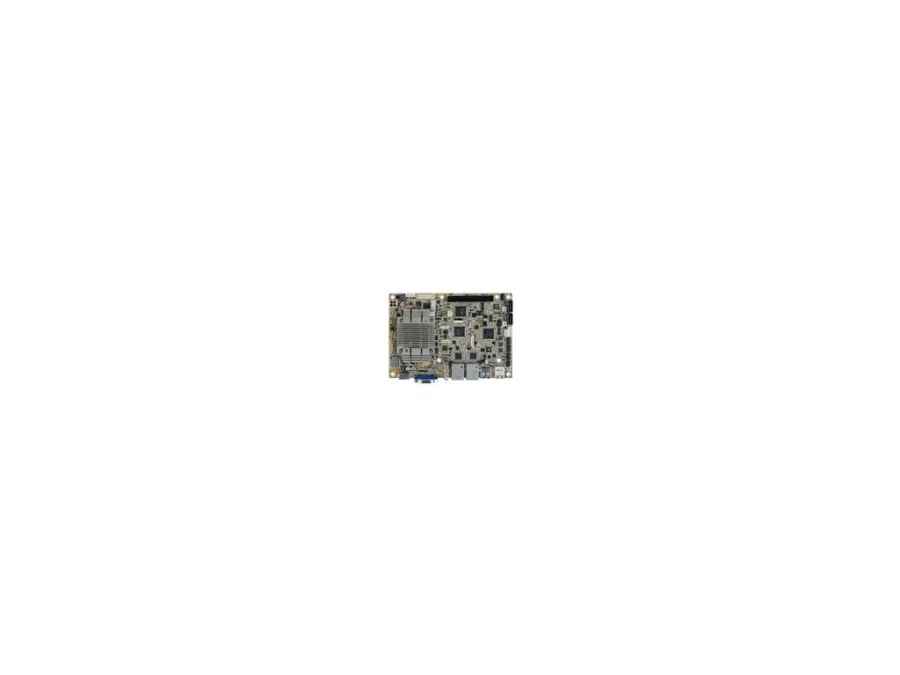

NANO-BT-i1-J19001-R11

EPIC SBC supports Intel 22nm Quad-Core Celeron J1900 2.0GHz (10W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA, mSATA , COM, iRIS-1010, audio and RoHS

You need to be logged in to view information about price and stock
Unit:pcs
Code 1:122514017027
Code 2:
Warranty:24
Warranty for companies: 24
Brand:IEI

Description

EPIC SBC supports Intel 22nm Quad-Core Celeron J1900 2.0GHz (10W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA, mSATA , COM, iRIS-1010, audio and RoHS





Specification:

  • Processor support: the board supports 22nm quad-core Intel Celeron J1900 2.0GHz processor with integrated SoC, which provides sufficient performance for various applications while low power consumption (10W).
  • Graphics Outputs:The board is equipped with VGA, HDMI and LVDS outputs, allowing you to connect various display devices.
  • The board has dual PCIe GbE LAN ports, ensuring fast and reliable network connectivity.
  • USB and storage interfaces: The board has USB 3.0 ports for fast data transfers and supports SATA and mSATA for data storage connections.
  • PCIe Mini: The board has two PCIe Mini slots that provide the ability to expand with additional peripherals.
  • The board has a COM port for connecting serial devices.
  • iRIS-1010: iRIS-1010 is a technology that allows remote management and monitoring of the system.
  • Audio: The board is equipped with audio outputs for audio output.
  • RoHS: The board is RoHS compliant, which means it complies with environmental standards to limit the use of hazardous substances.



Downloads

Technical specification

Specifikace

Minimální provozní teplota
Minimální provozní teplota
-20 °C
Maximální provozní teplota
Maximální provozní teplota
60 °C
Ethernet
Ethernet
10/100/1000 Mbps
Celkový počet LAN portů
Celkový počet LAN portů
2
Počet sériových portů
Počet sériových portů
4
Počet USB portů
Počet USB portů
4
čipset / CPU
čipset / CPU
Bay Trail SoC
Pasivní chlazení
Pasivní chlazení
Ne
Rozšiřující sloty
Rozšiřující sloty
mini PCIe; PCI
Provedení
Provedení
Epic NANO board
