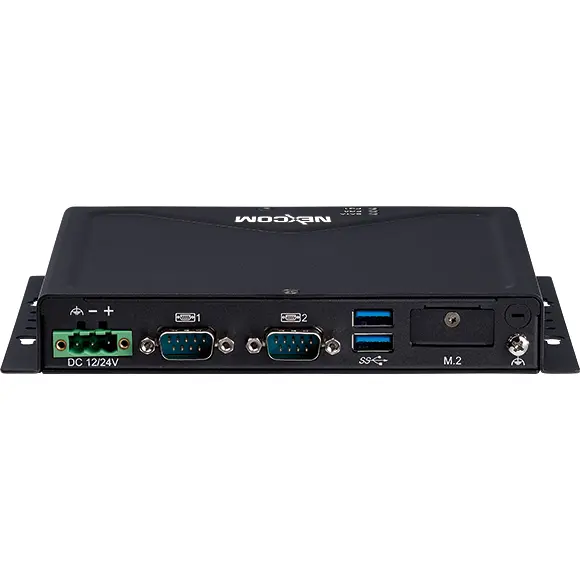

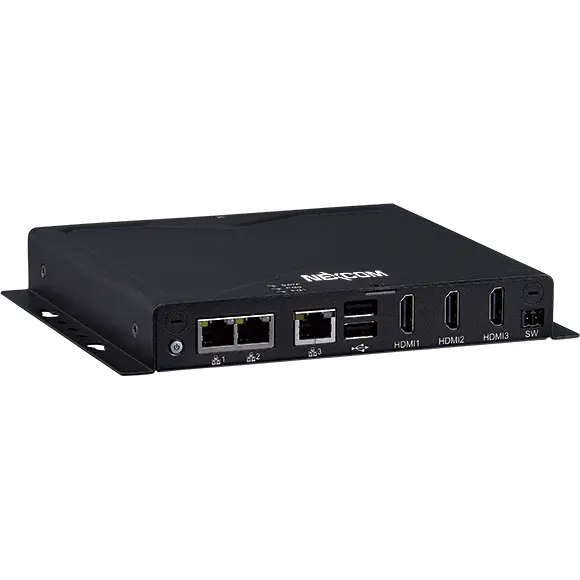

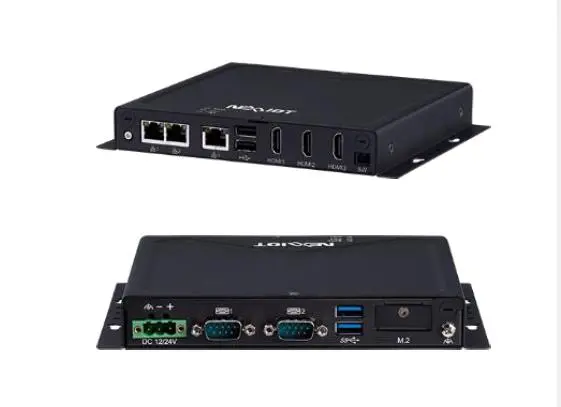

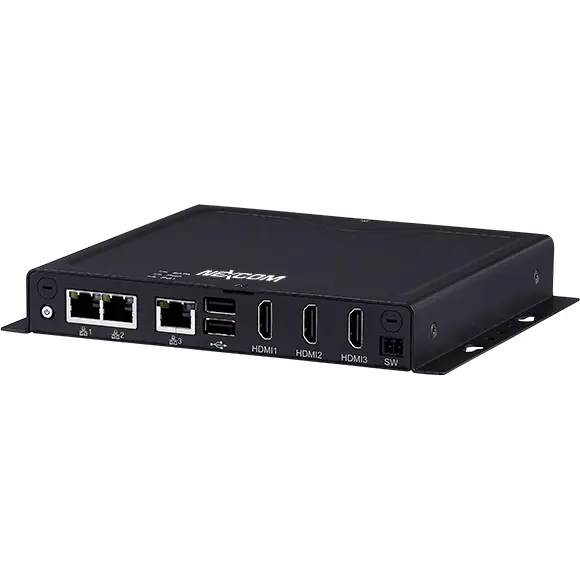

NISE 53-E01

Built-in PC NISE - Slim line

You need to be logged in to view information about price and stock
Unit:pcs
Code 1:101522320051
Code 2:10J00005300X0
Warranty:24
Warranty for companies: 24
Brand:NEXAIOT

Description

The NISE 53-E01 is a fanless industrial computer from Nexcom that resembles the size of a lunchbox thanks to its compact design. Powered by a powerful Celeron processor, this miniature performance computer moves seamlessly across operating systems and seamlessly supports Linux, Windows 10 IoT and Windows 11. Its diminutive size makes it ideal for tight spaces, while its rugged design meets the demands of industrial and commercial kiosks. It's no exaggeration to call it the new industrial NUC, offering a dynamic computing solution tailored to different environments thanks to its combination of power, size and equipment.

Specifications:

Onboard processor Intel® Celeron® J6413, 1.8 GHz

  • 3 x HDMI (three displays)
  • 2 x USB 3.0, 2 x USB 2.0
  • 1 x RS232/485, 1 x RS232/485 with automatic data flow control
  • 3 x GbE LAN ports
  • 1 x full-size mini-PCIe
  • 2 x M.2 Key B expansion (optional(WiFI, BT, 4G)
  • Operating temperature from -10 °C to 60 °C
  • +12V/24V DC input support; ATX power mode support

Downloads

Videos

Documents

Technical specification

Specifikace

Minimální provozní teplota
Minimální provozní teplota
-5 °C
Maximální provozní teplota
Maximální provozní teplota
55 °C
Ethernet
Ethernet
10/100/1000 Mbps
Celkový počet LAN portů
Celkový počet LAN portů
2
Počet sériových portů
Počet sériových portů
3
Montáž na lištu DIN
Montáž na lištu DIN
Ne
Montáž do skříně RACK
Montáž do skříně RACK
Ne
Montáž na panel
Montáž na panel
Ano
Počet USB portů
Počet USB portů
4
Napájení
Napájení
24V DC
HDD/SSD
HDD/SSD
2,5'' SATA HDD / SSD; eMMC; mSATA
čipset / CPU
čipset / CPU
Bay Trail SoC
Wi-Fi
Wi-Fi
Volitelně
Pasivní chlazení
Pasivní chlazení
Ano
Rozšiřující sloty
Rozšiřující sloty
mini PCIe
