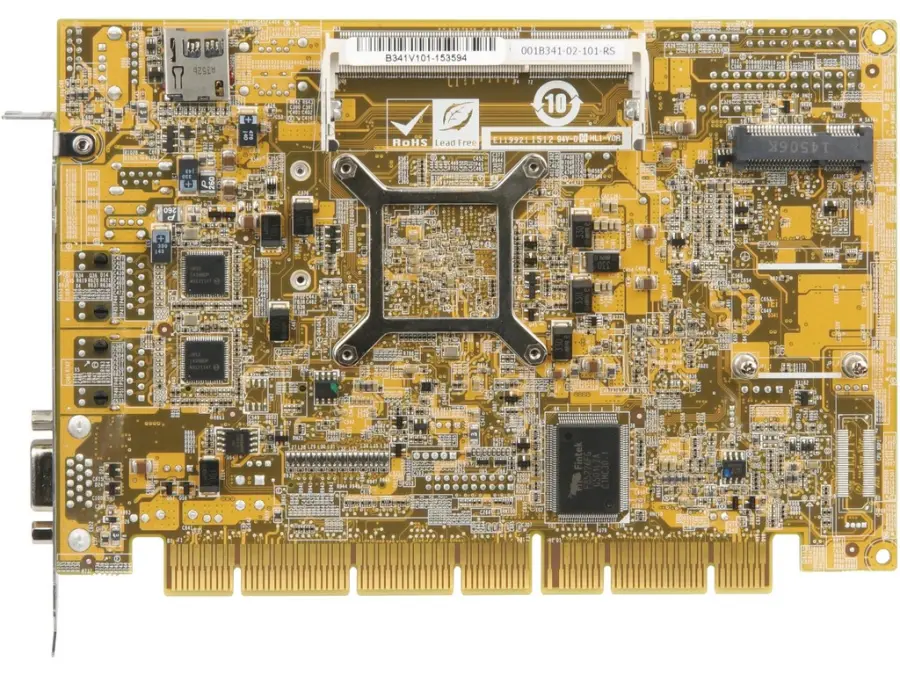

--- title: "PCISA-BT-E38251-R11" category: "Industrial PC Components > PROCESSORS CARDS > Half-size PCI/ISA CPU cards" --- **Kategorie:** Industrial PC Components > PROCESSORS CARDS > Half-size PCI/ISA CPU cards # PCISA-BT-E38251-R11 Half-size PCISA CPU card supports Intel® Atom™ E3825 (6W) on-board SoC with VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA, COM, Audio and RoHS ## Základní informace | Parametr | Hodnota | | --- | --- | | Unit | pcs | | Code 1 | 122002014594 | | Warranty | 24 | | Warranty for companies | 24 | | Brand | IEI | ## Podrobný popis Half-size PCISA CPU card supports Intel® Atom™ E3825 (6W) on-board SoC with VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA, COM, Audio and RoHS  Specification:Processor: support for Intel® Atom™ E3825 integrated SoC with low power consumption (6W) for energy-efficient operation.Graphics: Support for VGA and iDP (Intelligent Display Port) for monitor connection and video display.Dual Intel® PCIe GbE (Gigabit Ethernet) for fast and reliable network connectivity.USB: USB 3.0 support for fast data transfers between devices.SATA and mSATA support for hard drives or SSDs for a variety of storage options.PCIe Mini: PCIe Mini card slot for expanded functionality.Communication:COM interface for serial communication.Audio: Audio output support for audio applications.RoHS: Compliant with the RoHS directive, which means it is free of certain hazardous substances that are harmful to the environment.  ## Technická specifikace | Vlastnost | Hodnota | | --- | --- | | Min. provozní teplota | Min. provozní teplota -20 °C | | Max. provozní teplota | Max. provozní teplota 60 °C | | Ethernet | Ethernet 10/100/1000 Mbps | | Celkový počet LAN portů | Celkový počet LAN portů 2 | | Počet sériových portů | Počet sériových portů 3 | | Počet USB portů | Počet USB portů 7 | | čipset / CPU | čipset / CPU Bay Trail SoC | | Pasivní chlazení | Pasivní chlazení Ne | | Rozšiřující sloty | Rozšiřující sloty ISA; mini PCIe; PCI | | Provedení | Provedení Halfsize CPU karta | ## Soubory ke stažení * [Katalog PCISA-BT](https://www.elvac.eu/ipc/download/iei/datasheet/PCISA-BT.pdf)
