Industrial ComputersFanless PCPowerful and expandableTANK-XM810-i5AC-R12

TANK-XM810-i5AC-R12

To place an order, please register/log in

TANK-XM810-i5AC-R11 fanless cooling embedded system with Intel® Core™ i5-10500TE processor. It offers a wide range of interfaces for connecting devices and can handle operating temperatures from -20 °C to 60 °C for CPUs with a TDP of 35W.

You need to be logged in to view information about price and stock

Unit:	pcs
Code 1:	101523010274
Code 2:
Warranty:	24
Warranty for companies:	24
Brand:	IEI

Description

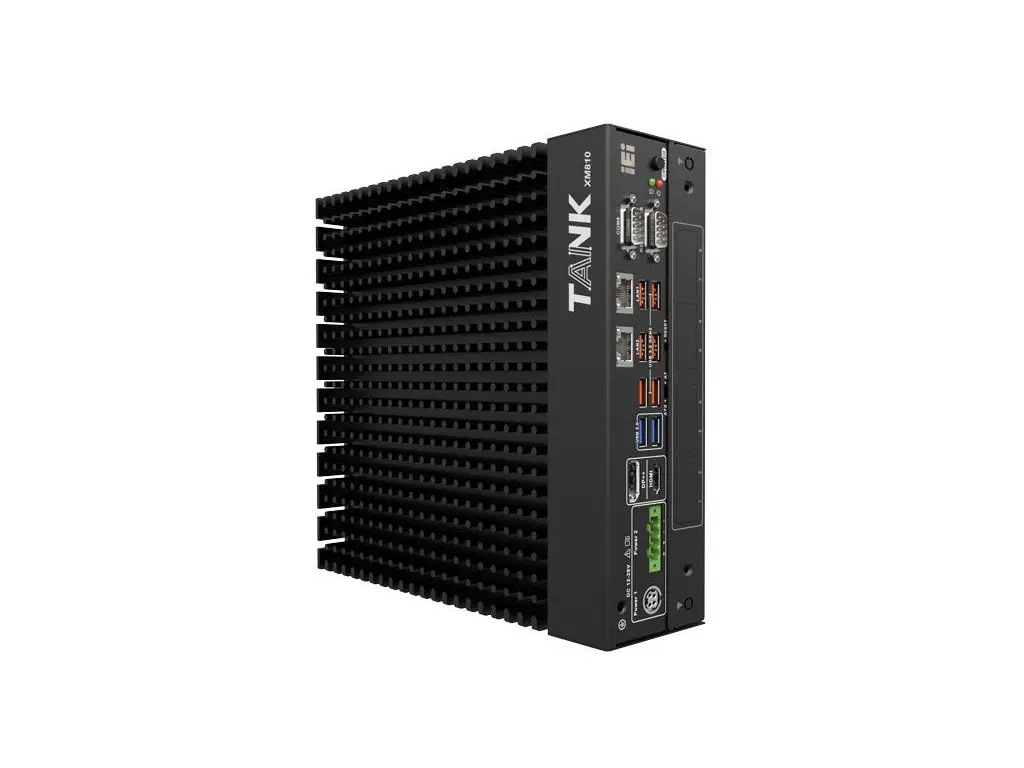

TANK-XM810-i5AC-R11 Durable Embedded System with Fanless Cooling

Supported processor: Intel® Core™ i5-10500TE 2.3GHz (up to 3.7GHz, 6-core, 35W TDP)

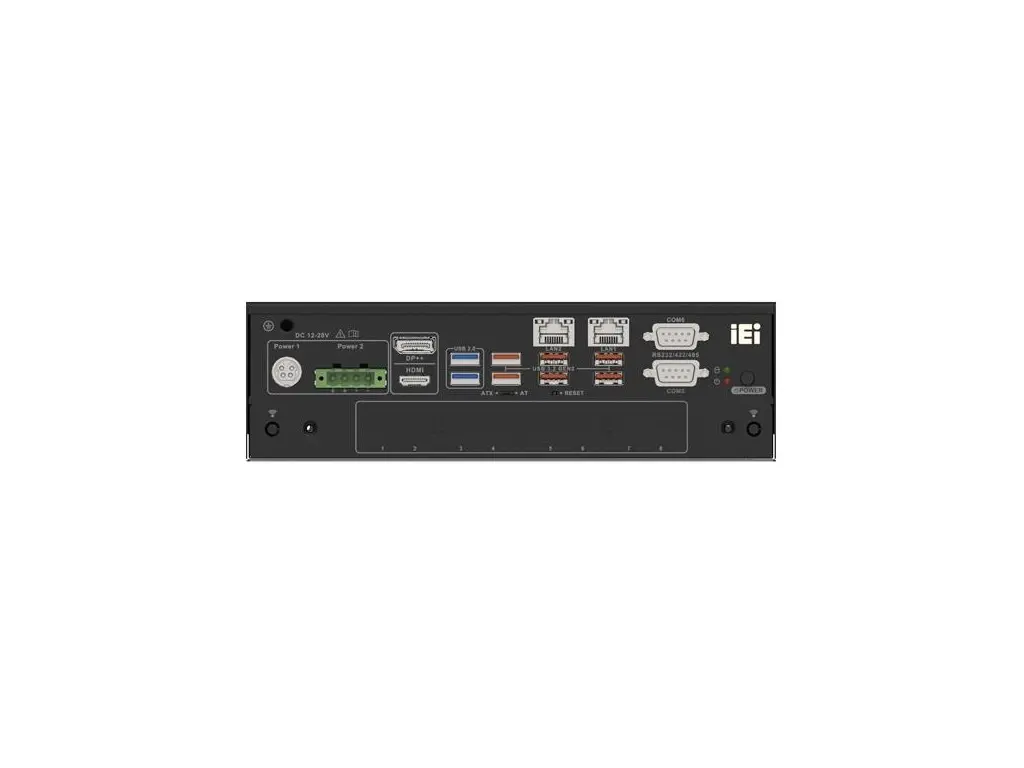

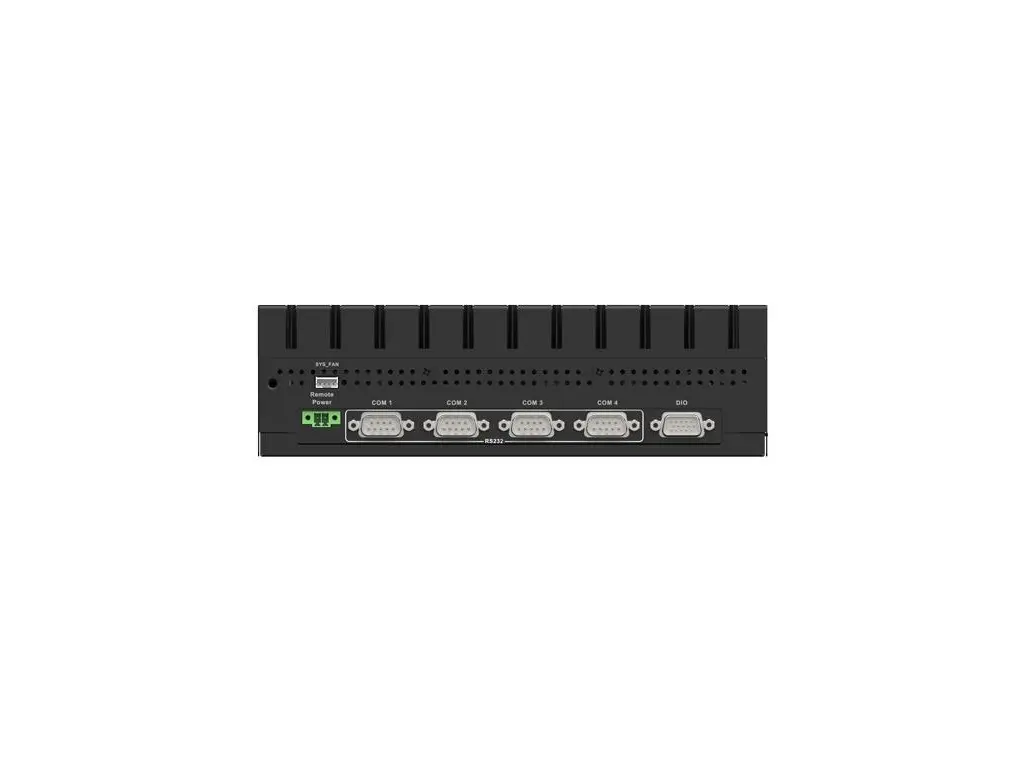

Features 2x USB 2.0 and 6x USB 3.2 gen 2. In addition, 2x RS-232/422/485, 4x RS-232, 12-bit digital I/O (6-in/6-out), DisplayPort Dual Mode (DP++) and HDMI, 2x 2280 M-keys (PCle x2) (RAID 0/1 support), two 3200 MHz SO-DIMM DDR4 slots with 8GB of pre-installed RAM (max. 64GB), 2.5" SATA 6Gb/s HDD/SSD bay and last but not least 2x RJ-45 and 2x I225V 2.5GbE (colay I225LM).

Operating temperatures range from -20°C to 60°C for TDP35W CPUs and SSDs and from -20°C to 50°C for TDP65W CPUs and SSDs. Storage temperature ranges from -40 °C to 85 °C.

Downloads

Videos

Documents

Technical specification

Specifikace

Min. provozní teplota	Min. provozní teplota -20 °C
Max. provozní teplota	Max. provozní teplota 60 °C
Ethernet	Ethernet 2,5 Gbps
Celkový počet LAN portů	Celkový počet LAN portů 3
Počet sériových portů	Počet sériových portů 6
Montáž na lištu DIN	Montáž na lištu DIN Ne
Montáž do skříně RACK	Montáž do skříně RACK Ne
Montáž na panel	Montáž na panel Ano
Počet USB portů	Počet USB portů 8
Napájení	Napájení 12 ~ 28V DC
HDD/SSD	HDD/SSD 2,5'' SATA HDD / SSD
čipset / CPU	čipset / CPU Q470
Wi-Fi	Wi-Fi Volitelně
Pasivní chlazení	Pasivní chlazení Ano
Rozšiřující sloty	Rozšiřující sloty M.2
Procesor	Procesor Intel Core i5
